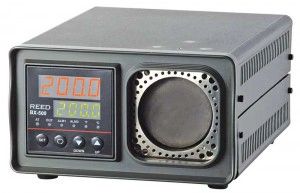

REED BX-500 Infrared Temperature Calibrator, 932°F (500°C)


This infrared temperature calibrator provides accurate temperatures to calibrate non-contact temperature instruments. The BX-500 is capable of generating temperatures up to 932°F (500°C) and is designed to accommodate various infrared thermometers.


  • Simply set the desired temperature in increments of 0.1°, wait for the calibrator to attain equilibrium, point the infrared thermometer at the target and compare measurements
  • For calibrating non-contact temperature instruments (infrared thermometers, pyrometers and thermal imagers)
  • Wide aperture compensates for optical infrared thermometer variations
  • Contact RTD reference well located directly behind the blackbody target to assure accurate results


Temperature Range 122 to 932°F (50 to 500°C)
Accuracy ≤212°F (100°C): ±1.6°F (0.8°C)
212 to 392°F (100 to 200°C):
±3.2°F (1.6°C)
392 to 932°F (200 to 500°C):
±5.6°F (2.8°C)
Stability ≤212°F (100°C): ±0.2°F (0.1°C)
212 to 392°F (100 to 200°C):
±0.4°F (0.2°C)
392 to 932°F (200 to 500°C):
±0.8°F (0.4°C)
Resolution 0.1°F (0.1°C)
Target Emissivity 0.95 (fixed)
Heating Time Approx. 30 mins to maximum
Cooling Time Approx. 30 mins to 122°F (100°C)
Aperture Diameter 2.28" (58mm)
Display Dual LED
Power Supply 110VAC, 2.5A
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 0 to 80%
Dimensions 7.1 x 4.5 x 8.8" (180 x 114 x 233mm)
Weight 6.6lbs (3kg)
