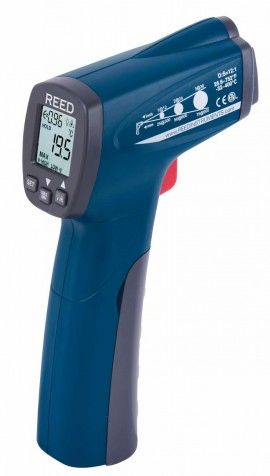

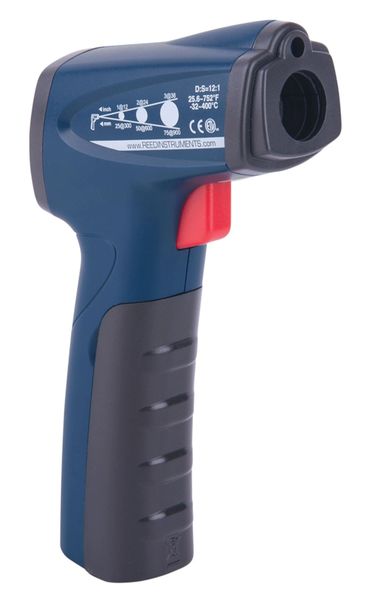

REED R2300 Infrared Thermometer


REED R2300 Offers

This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperatures of hot, hazardous or hard-to reach objects from a safe distance.


  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 12:1 distance to spot size ratio
  • Digitally adjustable emissivity
  • Max and Min readings

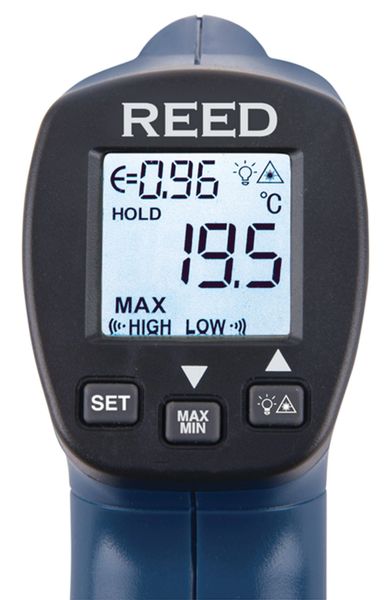

  • Backlit display
  • High and low alarms
  • Low battery indication and auto shut off

REED R2300 Specifications

Temperature Range -25.6 to 752°F (-32 to 400°C)

Accuracy ±4°F (2°C) or ±2% rdg.

Resolution 0.1°F (0.1°C)

Optical Resolution (D:S) 12:1

Spectral Response 8 to 14µm

Emissivity 0.1 to 1.0 (Adjustable)

Response Time 500ms

Backlit Display Yes

Display Hold Yes

High/Low Alarms Yes

Alarm Indicators Yes (Beeping)

Max/Min Yes

F/C Switchable Yes

Laser Type Class II

Low Battery Indicator Yes

Power Supply 9V Battery

Product Certifications CE, ETL, RoHS

Battery Life Approx. 10 hours (with continuous use, backlight on)

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Operating Humidity Range <90%

Maximum Operating Altitude 6561' (2000m)

Maximum Storage Altitude 39370' (12000m)

Dimensions 6.0 x 4.3 x 1.6" (153 x 108 x 40mm)

Weight 6.5oz (185g)

What's included with the REED R2300

Infrared Thermometer
