ABSOLUTE Digital Indicator 0.5"/0.00005" Inch/Metric Conversion Ultimate High Precision

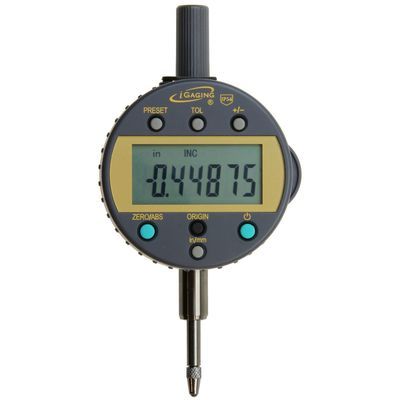

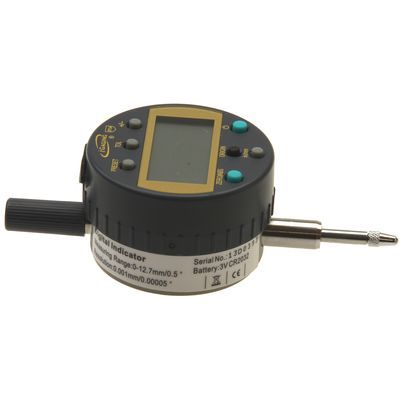

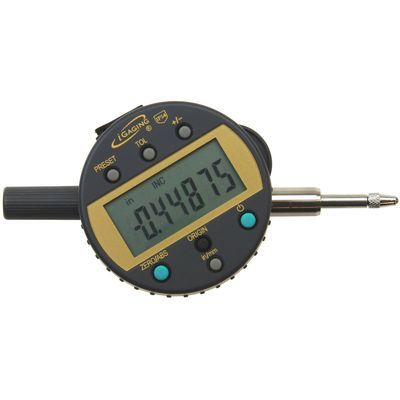

iGaging ABSOLUTE Technology Indicator

The iGaging digital electronic indicator with ABSOLUTE encoder always remembers and traces absolute origin zero or preset data. It provides unlimited measuring speed without losing its origin. This indicator will indicate absolute position when turned on. Indicator face can be rotated up to 330�.

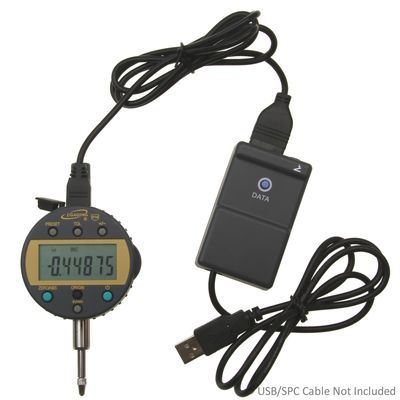

SPC/USB Data Port
Indicator face can be rotated up to 330�
ABSOLUTE encoder technology
IP54 Protection
Read and convert Inch/mm display
Change measuring direction - Positive up or positive down
Origin set
Preset value
Tolerance function
Zero/ABS - Switch between incremental and absolute measuring
Super large LCD display
Shank diameter: 3/8"
Carbide tip
4-48 threaded tip
2 Years warranty

Range: 0.5"/12.5mm
Resolution: 0.00005"/0.001mm
Accuracy: 0.00016"
Repeatability: 0.00005"/0.001mm
Battery: 1x CR2032 (2 included)

iGaging part number: 35-700-10
