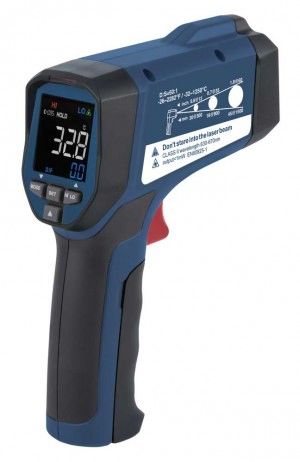

• REED R2330 Infrared (IR) Thermometer 50:1, 2282°F (1250°C)


    REED R2330 Offers

    This infrared thermometer features a 50:1 distance to spot ratio that allows users to accurately measure smaller areas from a greater distance. The R2330 has the ability to track maximum, minimum, average and differential readings and includes a bright color display for ease of use in both sunlight and dimly lit environments. Tri-color LEDs quickly indicate when temperatures are within set parameters (green), above (red) or below (blue).


    • Built-in laser pointer identifies target area
    • User selectable °F or °C
    • 50:1 Distance to Spot size ratio
    • Bright color display (EBTN)
    • Digitally adjustable emissivity
    • Max, Min, Average and Differential readings
    • Audible (beep) and visual (tri-color LED) user adjustable alarms
    • Internal memory stores up to 5 pre-set high & low alarms and 5 emissivity settings
    • Trigger lock and tripod mount for continuous monitoring
    • Low battery indication and auto shut off

    REED R2330 Specifications

    Temperature Range -26 to 2282°F (-32 to 1250°C)
    Accuracy Basic: ±1.8% of reading or 3.6°F (1.8°C)
    Detailed: ≥0°C: ±1.8°C or ±1.8% of reading,
    whichever is greater
    <0°C: ±(1.8°C+0.1°C/°C)
    ≥32°F: ±3.6°F or ±1.8% of reading,
    whichever is greater, <32°F: ±(3.6°F+0.1°F/°F)
    Resolution 0.1°F (0.1°C)
    Optical Resolution (D:S) 50:1
    Laser Optimization Distance 5.2' (1.6m)
    Repeatability 0.8°C or 0.8%, whichever is greater
    (1.8°F or 0.8%, whichever is greater)
    Dual Laser Yes
    Spectral Response 8 to 14μm
    Emissivity 0.1 to 1.0 (Adjustable)
    Response Time 250ms
    Backlit Display Yes (Color EBTN)
    Display Hold Yes
    High/Low Alarms Yes (audible and visual)
    Alarm Indicators LED (High: Red, Low: Blue)
    Max/Min Yes
    Average and Differential Yes
    F/C Switchable Yes
    Trigger Lock Yes
    Internal Memory Yes
    Tripod Mountable Yes
    Laser Class Class II
    Low Battery Indicator Yes
    Power Supply 9V Battery
    Battery Life Approx. 10 hours (with continuous use, backlight on)
    Product Certifications CE, RoHS
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Operating Humidity Range 10 to 90%
    Maximum Operating Altitude 6561' (2000m)
    Maximum Storage Altitude 39370' (12000m)
    Dimensions 7 x 4.98 x 2" (179 x 126.5 x 53mm)


    What's included with the REED R2330

    • Infrared Thermometer
    • Carrying Case
    • Battery

    10.95oz (310g)
