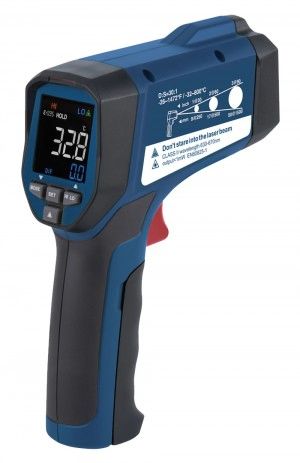

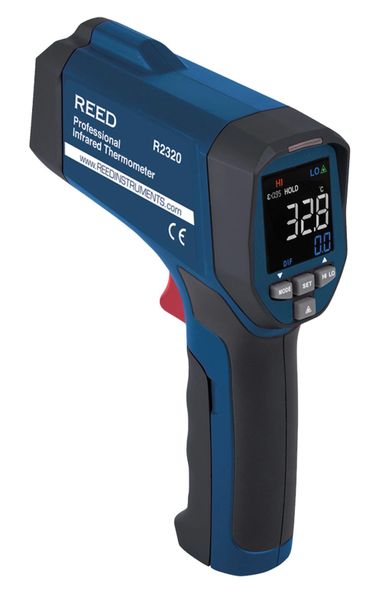

REED R2320 Infrared (IR) Thermometer, 30:1, 1472°F (800°C)
$159.00
REED R2320 Offers

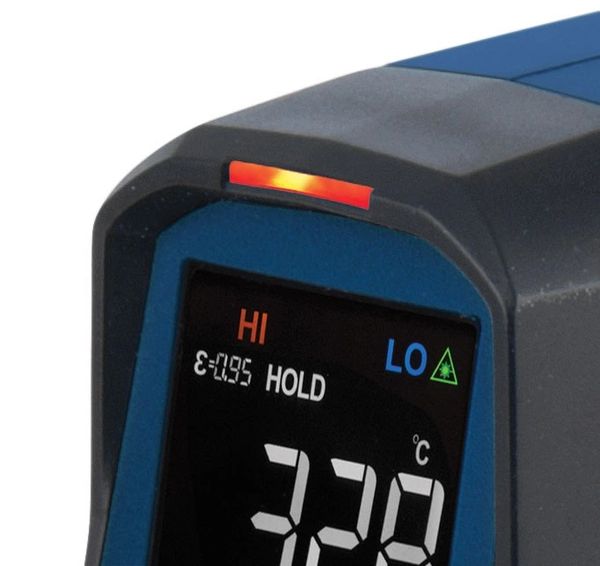

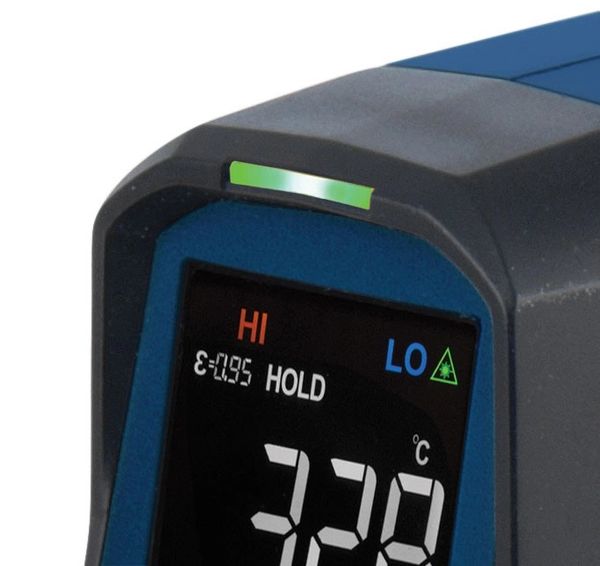

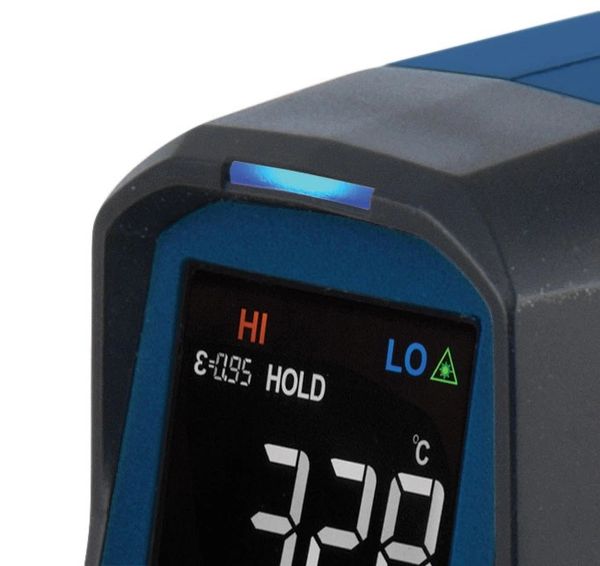

This infrared thermometer features a 30:1 distance to spot ratio and is capable of measuring temperatures up to 1472°F (800°C). The R2320 has the ability to track maximum, minimum, average and differential readings and includes a bright color display for ease of use in both sunlight and dimly lit environments. Tri-color LEDs quickly indicate when temperatures are within set parameters (green), above (red) or below (blue).
Features
Built-in laser pointer identifies target area
User selectable °F or °C
30:1 Distance to Spot size ratio
Bright color display (EBTN)
Digitally adjustable emissivity
Max, Min, Average and Differential readings
Audible (beep) and visual (tri-color LED) user adjustable alarms
Internal memory stores up to 5 pre-set high & low alarms and 5 emissivity settings
Trigger lock for continuous monitoring
Low battery indication and auto shut off
REED R2320 Specifications
Temperature Range -26 to 1472°F (-32 to 800°C)
Accuracy Basic: ±1.8% of reading or 3.6°F (1.8°C)
Detailed: ≥0°C:±1.8°C or of reading ±1.8%, whichever is greater
<0°C: ±(1.8°C+0.1°C/°C)
≥32°F: ±3.6°F or of reading ±1.8%, whichever is greater
<32°F: ±(3.6°F+0.1°F/°F)
Resolution 0.1°F (0.1°C)
Optical Resolution (D:S) 30:1
Spectral Response 8 to 14µm
Emissivity 0.1 to 1.0 (Adjustable)
Response Time 250ms
Backlit Display Yes (Color EBTN)
Display Hold Yes
High/Low Alarms Yes (audible and visual)
Alarm Indicators LED (High: Red, Low: Blue)
Max/Min Yes
Average and Differential Yes
°F/°C Switchable Yes
Trigger Lock Yes
Tripod Mountable Yes
Laser Type Class II
Low Battery Indicator Yes
Power Supply 9V battery
Battery Life Approx. 10 hours (with continuous use, backlight on)
Product Certifications CE, RoHS
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 10 to 90%
Maximum Operating Altitude 6561' (2000m)
Maximum Storage Altitude 39370' (12000m)
Dimensions 7 x 4.98 x 2" (179 x 126.5 x 53mm)
Weight 10.95oz (310g)
What's included with the REED R2320
Infrared Thermometer
Carrying Case
Battery
