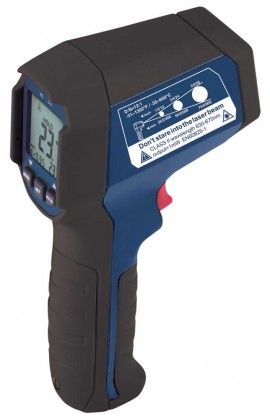

• REED R2310 Infrared Thermometer, 12:1, 1202°F (650°C)


    REED R2310 Offers

    This infrared thermometer features a 12:1 distance to spot ratio and has been drop tested up to 9.8ft (3M). The R2310 has the ability to track maximum, minimum, average and differential readings and the ability to set high/low alarms and monitor continuously.


    • Built-in laser pointer identifies target area
    • User selectable °F or °C
    • 12:1 distance to spot size ratio
    • Digitally adjustable emissivity
    • Max, Min, Average and Differential readings

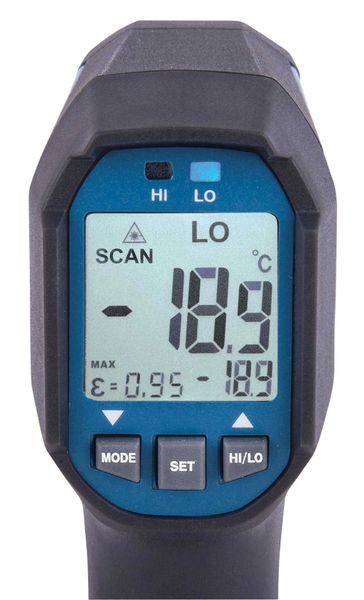

    • Backlit display
    • High and low alarms
    • Dustproof and Drop tested
    • Trigger lock for continuous monitoring
    • Low battery indication and auto shut off

    REED R2310 Specifications

    Temperature Range -31 to 1202°F (-35 to 650°C)

    Accuracy ≥32°F (0°C):±3.6°F (1.8°C) or ±1.8% rdg.,whichever is greater

    <32°F (0°C:±3.6°F+0.1°F (1.8°C+0.1°C)/rdg.

    Resolution 0.1°F (0.1°C)

    Optical Resolution (D:S) 12:1

    Spectral Response 8 to 14µm

    Emissivity 0.1 to 1.0 (Adjustable)

    Response Time 250ms

    Backlit Display Yes

    Display Hold Yes

    High/Low Alarms Yes

    Alarm Indicators LED (High: Red, Low: Blue)

    Max/Min Yes

    Average and Differential Yes

    °F/°C Switchable Yes

    Trigger Lock Yes

    Tripod Mountable Yes

    Drop Tested Yes, 9.8' (3M)

    Laser Type Class II

    Low Battery Indicator Yes

    Power Supply 9V battery

    Battery Life Approx. 10 hours (with continuous use, backlight on)

    Product Certifications CE, RoHS, IP65, Drop Tested

    Operating Temperature 32 to 122°F (0 to 50°C)

    Storage Temperature -4 to 140°F (-20 to 60°C)

    Operating Humidity Range 10 to 90%

    Maximum Operating Altitude 6561' (2000m)

    Maximum Storage Altitude 39370' (12000m)

    Dimensions 7.4 x 4.7 x 2.2" (189 x 118 x 55mm)

    Weight 10.3oz (292g)

    What's included with the REED R2310

    • Infrared Thermometer
    • Carrying Case
    • Battery
