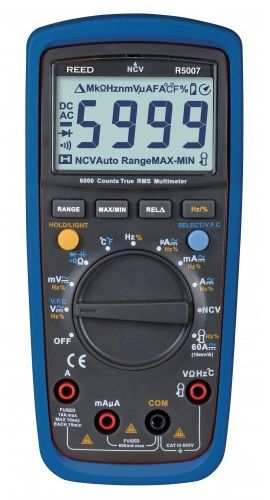

REED R5007 TRUE RMS DIGITAL MULTIMETER, 600V AC/DC

$89.00

This True RMS multimeter measures AC/DC voltage and current, resistance, capacitance, frequency and features a low pass VFC function to remove noise caused by variable frequency motors and drives. The R5007 also features a built-in non-contact voltage detector and Type K thermocouple probe for contact measurement.

Features

  • Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  • Built-in non-contact voltage detector and double molded plastic housing
  • Diode check and continuity functions
  • Relative and data hold functions
  • Backlit LCD and low battery indicator
  • Cat. III 600V safety rating

Specifications

AC/DC Voltage
Range AC: 60, 600mV, 6, 60, 600V
DC: 60, 600mV, 6, 60, 600V
Accuracy AC: 60, 600mV ±(0.5% rdg. + 2 dgt.)
6,60,600V ±(0.7% rdg. + 3 dgt.)
DC: 60, 600mV ±(1.0% rdg. + 2 dgt.)
6,60,600V ±(0.8% rdg. + 3 dgt.)
Resolution AC: 0.1, 1, 10mV, 0.1, 1V
DC: 0.1, 1, 10mV, 0.1, 1V
AC/DC Current
Range 600, 6000µA, 60, 600mA, 6, 10A
Accuracy AC: 600,6000µA/60mA, 600mA ±(1.0% rdg. + 3 dgt.)
6, 10A ±(1.2% rdg. + 3 dgt.)
DC: 600,6000µA/60.00mA, 600.0mA ±(0.7% rdg. + 2 dgt.)
6.000, 10.00A ±(1.0% rdg. + 3 dgt.)
Resolution 0.1, 1, 10µA, 0.1, 1, 10mA
Resistance
Range 600Ω, 6, 60, 600kΩ, 6, 60MΩ
Accuracy 600Ω: ±(1.0% rdg. + 2 dgt.)
6,60,600kΩ: ±(0.8% rdg. + 2 dgt.)
6MΩ: ±(1.2% rdg. + 3 dgt.)
60MΩ: ±(1.5% rdg. + 5 dgt.)
Resolution 0.1, 1, 10, 100Ω, 1, 10kΩ
Capacitance
Range 9.999nF, 99.99nF to 999.9µF, 9.999 to 99.99mF
Accuracy 9.999nF: Under REL (±4%+10 dgt.)
99.99nF to 999.9uF: ±(4.0% rdg. + 5 dgt.)
9.999 to 99.99mF: ±(10% rdg. (<2mF)
Resolution 1pF, 10pf to 0.1µF, 1µF to10µF
Frequency
Range 9.999Hz to 9.999MHz
Accuracy ±(0.1% rdg. + 4 dgt.)
Resolution 0.001Hz to 0.001Mz
Temperature
Range -40 to 1832°F (-40 to 1000°C)
Accuracy ±(2.5% rdg. + 5°F)
±(2.0% rdg. +3°C)
Resolution 1°F, 1°C
General Specifications
Range Selection Autoranging/Manual
True RMS Yes
Display 6,000 count LCD Display
Display Hold Yes
Max/Min Yes
Relative Mode Yes
Diode Test Yes
Backlit Display Yes
Continuity Check Audible signal if resistance ≤10Ω
Duty Cycle Yes (0.1 - 99.9%)
Non-Contact Voltage Detector Yes
Kick Stand Yes
Auto Power Off Yes (after 15 minutes)
Power Supply 2x AA Batteries
Low Battery Indicator Yes
Fuse Protection Yes
Replaceable Test Leads Yes
Overvoltage Category CAT. III 600V
Product Certifications CE
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 6.9 x 3.2 x 1.9" (175 x 80 x 49mm)
Weight 13oz (370g)
