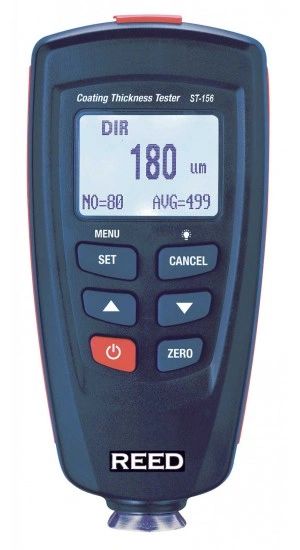

REED ST-156 Coating Thickness Gauge, 0-1250µm/0-50mils
$259.00
This coating thickness gauge features one or two point calibration, user adjustable high/low alarms and USB interface to further analyse results in the included software. The ST-156 is capable of storing up to 400 readings and includes two new measuring modes (Single and Continuous).
Features
- Magnetic induction for ferrous substrates
- Eddy current measurement for non-ferrous substrates
- Easy-to-read backlit LCD display
- One or two point calibration
- Zero adjustment button
- Memory stores up to 400 readings
- User adjustable high/low alarms
- Min/Max and Average functions
- USB interface includes software
- Low battery indicator and auto shut off
Specifications
| Measuring Range | 0 to 1250µm 0 to 49.21mils |
| Accuracy | 0 to 850µm: ±3% +1µm 850 to 1250µm: ±5% 0 to 33.46mils: ±3% +0.039mils 33.46 to 49.21mils: ±5% |
| Resolution | 0 to 50µm: 0.1µm 50 to 850µm: 1µm 850 to 1250µm: 0.01mm 0 to 1.968mils: 0.001mils 1.968 to 33.46mils: 0.01mils 33.46 to 49.21mils: 0.1mils |
| Measurement Modes | Single and Continuous |
| Display | LCD |
| Backlit Display | Yes |
| Min/Max/Average Readings | Yes |
| Zero Button | Yes |
| Minimum Curvature Radius | Ferrous: 1.5mm (59.06mils) Non-Ferrous: 3mm (118.1mils) |
| Minimum Area Diameter | Ferrous: 7mm (275.6mils) Non-Ferrous: 5mm (196.9mils) |
| Minimum Substrate Thickness | Ferrous: 0.5mm (19.69mils) Non-Ferrous: 0.3mm (11.81mils) |
| Auto Shut-off | Yes (after 3 mins, off) |
| Low Battery Indicator | Yes |
| Power Supply | 2 AAA Batteries |
| Internal Memory | Yes (up to 400 readings) |
| PC Connectivity | USB Cable |
| Software | Yes (Included) |
| Software OS Compatibility | Windows XP / Vista / 7 |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 20 to 90% |
| Dimensions | 4.7 x 2.4 x 1.25" (120 x 63 x 32 mm) |
| Weight | 6.17oz (175g) |
