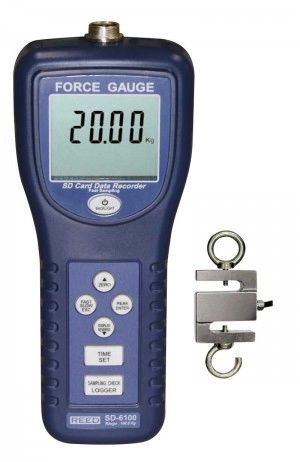

REED SD-6100 SD Series Force Gauge Datalogger, 220lbs (100kg)


This gauge has the ability to measure push and pull forces up to 220lbs (100kg) and features a reversible display ensuring measurements are easily read, regardless of testing direction. The SD-6100 features a real time datalogger with memory card slot. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include an AC adapter for continuous long-term monitoring and PC software to track real-time measurements.


  • Measures tension and compression
  • Records in Peak hold or Normal mode
  • Fast/Slow response selection
  • Full capacity tare (zero) capability
  • Force is measured in kg, lb or Newtons
  • Large, easy-to-read backlit display
  • Reversible display ensures legible readings regardless of direction
  • Real-time datalogger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Optional PC software features live tracking via USB connection
  • Low battery indicator and auto shut off


Measuring Range100kg
Accuracy±(5% rdg + 2 dgt.)
Resolution0.15 kg/0.02 lb/0.02 N
Response TimeLess than 1 sec.
Full Scale DeflectionLess than 1mm
Display4-digit LCD
Backlit DisplayYes
Peak Hold MeasurementsYes
Zero AdjustmentYes
Overrange IndicatorYes (Audible alarm at 100kg)
Datalogging CapabilitiesYes
Real-Time Clock and Date StampYes
Selectable Sampling RateYes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External MemoryYes, expandable up to 16Gb with SD card (optional)
Auto Shut-offYes (after 10 mins/off)
Low Battery IndicatorYes
Power Supply6 AA Batteries or AC Adapter (optional)
Battery LifeSampling Time Dependent
PC ConnectivityUSB Cable (optional)
SoftwareSW-U801-WIN Software (optional)
Software OS CompatibilityWindows XP / Vista / 7
Product CertificationsCE
Operating Temperature0 to 122°F (0 to 50°C)
Storage Temperature14 to 140°F (-10 to 60°C)
Operating Humidity Range10 to 85%
Dimensions215 x 90 x 45mm (8.5 x 3.5 x 1.8")
Weight1.43 lb (650 g)
