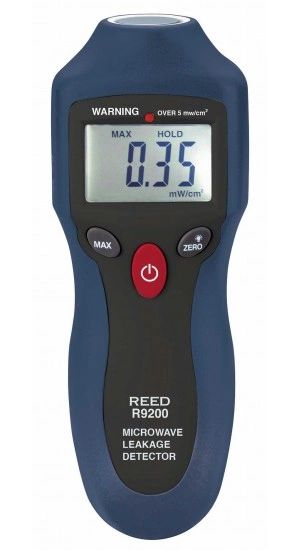

REED R9200 Microwave Leakage Detector


This microwave leakage detector meets EN-61000 standards and is capable of detecting very low levels of radiation. The R9200 features a backlit LCD display and preset alarms (audible and visual) at 5 mW/cm².


  • Detects very low levels of microwave leakage
  • Quick response and high accuracy
  • Designed for one-handed operation
  • Audible (beep) and visual (flashing LED) alarms at 5 mW/cm²
  • 4-digit, backlit LCD display
  • Max hold function and low battery indicator
  • Zero button for quick adjustment


Measuring Range 0 to 9.99 mW/cm²
Accuracy ±1mW/cm²
Resolution 0.01 mW/cm²
Display 4-digit LCD
Backlit Display Yes
Alarm Audible (buzzer) and Visual (LED Light)
Alarm Limit 5 mW/cm²
Max Hold Yes
Zero Button Yes
Response Time 2x per sec.
Power Supply 9V battery
Low Battery Indicator Yes
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 6.3 x 2.4 x 1.7" (160 x 60 x 42mm)
Weight 5.3 oz (151g)
