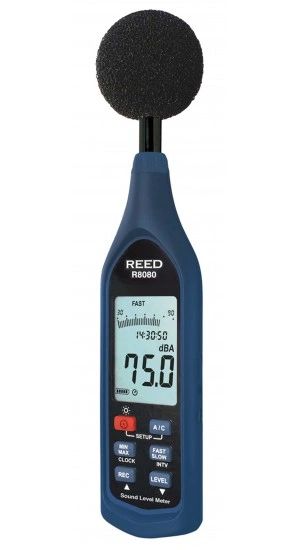

REED R8080 Sound Level Meter, Datalogger with Bargraph, 30 to 130 dB

$329.00

This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.

Features

  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Record up to 64,000 datapoints and keep track with internal time and date stamp
  • User selectable sampling rate from 1 to 60 seconds
  • Large, easy-to-read backlit LCD display
  • Digital analog bargraph
  • Min/Max hold and auto shut off
  • Tripod mount for long-term monitoring
  • Low battery indicator

Specifications

Measuring Ranges30-130 dB
Low: 30-90dB
Med: 50 -110 dB
High: 70 -130 dB
Full: 30-130 dB
Dynamic Range60 dB (in each range)
Accuracy±1.4 dB
ResolutionDigital: 0.1 dB
Analog: 2dB
Response TimeDigital: 500ms
Analog: 50ms
Frequency Range20 Hz to 8 kHz
Frequency WeightingA, C
Time WeightingFast/Slow (125ms and 1s)
Microphone0.5" (12.7mm) electret condenser
Digital Analog BargraphYes (30 segment)
Display4-digit LCD
Backlit DisplayYes
MinYes
MaxYes
Alarm IndicatorsUnder and Over (visual on-screen)
Datalogging CapabilitiesYes
Real-Time Clock and Date StampYes
Selectable Sampling RateYes (between 1s and 60s)
Internal Memory1mb (64,000 datapoints)
Auto Shut-offYes (after 30 mins/off)
Tripod MountableYes
Low Battery IndicatorYes
Power Supply4 x AAA batteries
OutputYes (AC/DC)
Battery LifeApprox 50 hours
PC ConnectivityUSB
Software OS CompatibilityWindows XP / Vista / 7 / 8 / 10
Product CertificationsCE, IEC 61672-1 Class 2, ANSI S1.4 Type 2
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature14 to 140°F (-10 to 60°C)
Operating Humidity Range10-90%
Dimensions10.4 x 2.5 x 1" (264 x 63 x 29mm)
Weight8.8oz (245g)
