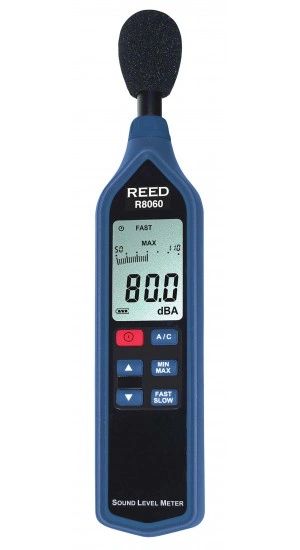

REED R8060 Sound Level Meter with Bargraph, Type 2, 30 to 130 dB


This sound level meter meets IEC Type 2 requirements and offers high accuracy for critical measurements. The R8060 features over/under range indicators for each of the 3 measurement ranges, a digital analog bargraph and the ability to keep track of Min/Max readings.


  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Large, easy-to-read LCD display
  • Digital analog bargraph
  • Data hold and Min/Max hold
  • AC/DC output signal for use with dataloggers
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off


Measuring Ranges30-130dB
Low: 30-90 dB
Med: 50-110 dB
High: 70-130 dB
Dynamic Range60 dB (in each range)
Accuracy±1.4 dB
ResolutionDigital: 0.1 dB
Analog: 2dB
Response TimeDigital: 500ms
Analog: 100ms
Frequency Range20 Hz to 8 kHz
Frequency WeightingA, C
Time WeightingFast/Slow (125ms and 1s)
Microphone0.5" (12.7mm) electret condenser
Digital Analog BargraphYes (30 segment)
Display4-digit LCD
Alarm IndicatorsUnder and Over (visual on-screen)
Auto Shut-offYes (after 30 mins/off)
Tripod MountableYes
Low Battery IndicatorYes
Power Supply9V battery
OutputYes (AC/DC)
Battery LifeApprox 50 hours
Product CertificationsCE, IEC 61672-1 Class 2
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature14 to 140°F (-10 to 60°C)
Operating Humidity Range10-90%
Dimensions10.2 x 2.2 x 1" (258 x 55 x 25mm)
Weight6.5oz (185g)
