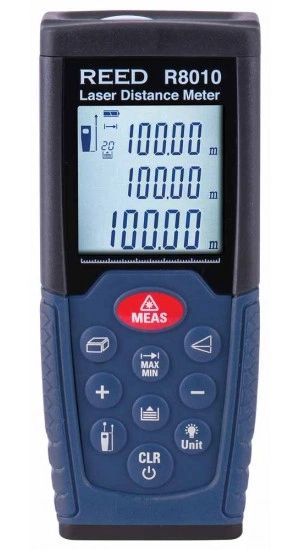

REED R8010 Laser Distance Meter, 328' (100m)

Dust and splash-proof (IP54), designed for one-handed operation.

REED R8010 Offers

This laser distance meter measures up to 328 feet (100 meters) and features a multi-line LCD display and the ability to calculate area, volume and sum of lengths. The R8010 is capable of retaining maximum and minimum readings and up to 20 measurements in memory.

Features

• Designed for one-handed operation
• User selectable unit of measure (imperial/metric)
• Laser target pointer
• Reference point selection (front or rear of instrument)
• Backlit multi-line LCD display
• Calculates Area, Volume and Sum of Lengths
• Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations
• Max/Min functions
• Continuous measurement mode
• Internal memory saves up to 20 readings
• Dust and splash-proof (IP54)
• Low battery indicator and auto shut off

REED R8010 Specifications

Measuring Range 1.92" to 328' (5cm to 100m)

Accuracy ±0.0018in/ft (±0.15mm/m)

Measuring Units Meters, Inches, Feet

Sensor Type Laser

Laser Type 630 to 670nm, <1mW

Display LCD (Multi-Line)

Backlit Display Yes

Start Point Selection Yes (Front/Back)

Reading Mode 2 (Single/Continuous)

Maximum and Minimum Functions Yes

Calculation Functions Addition, Subtraction, Area, Volume, Sum of Lengths, 2 Point Indirect (Pythagoras), 3 Point Indirect

Internal Memory Yes (Up to 20 Readings)

Response Time 2 secs

Auto Shut-Off Yes (After 3 mins)

Low Battery Indicator Yes

Power Supply 2 x AAA Batteries

Battery Life Up to 4,000 Measurements

Laser Class Class II

Product Certifications CE, RoHS, IP54

Operating Temperature 14 to 122°F (-10 to 50°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Operating Humidity Range <95% RH

Dimensions 4.5 x 1.9 x 1.1" (110 x 46 x 28 mm)

Weight 3.5oz (100g)

What's included with the REED R8010

• Laser Distance Meter
• Soft Carrying Case
• Wrist Strap
• Screwdriver
• 2 x AAA Batteries

Ideal Applications for the REED R8010

• Measuring conduit and wire lengths
• Light Retrofitting Projects
• Piping/exhausts/ventilation and equipment installation
• Conduit layout and installation
• Air ventilation and duct work positioning
• Air volume calculations
• Hot/cold water piping locations
• Determining wire length and duct sizing
• Floor plans
• Network room layout
