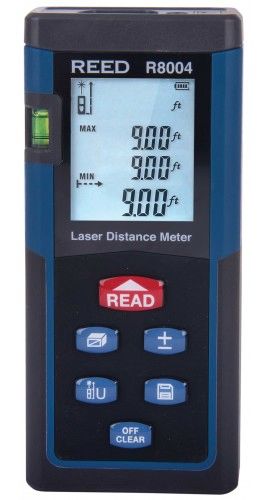

REED R8004 Laser Distance Meter, 131' (40m)


REED R8004 Offers
This laser distance meter measures up to 131 feet (40 meters) and features a backlit multi-line LCD display and the ability to calculate area, volume and sum of lengths. The R8004 is capable of retaining maximum and minimum readings and up to 30 measurements in memory.


Designed for one-handed operation
User selectable unit of measure (imperial/metric)
Laser target pointer
Reference point selection (front or rear of instrument)
Backlit multi-line LCD display
Area, Volume and Max/Min functions
Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations
Integrated bubble level
Continuous measurement mode
Internal memory saves up to 30 readings
Low battery indicator and auto shut off

REED R8004 Specifications
Measuring Range 131' (40m)
Accuracy ±(5.0mm+d x 5/100000)
Measuring Units m, in, ft
Sensor Type Laser
Laser Type 630 to 670nm, <1mW
Display LCD (multi-line)
Backlit Display Yes
Start Point Selection Yes (Front/Back)
Reading Mode 2 (Single/Continuous)
Maximum and Minimum Functions Yes
Calculation Functions Addition, Subtraction, Area, Volume, Sum of Lengths, 2 point indirect (pythagoras), 3 point indirect
Internal Memory Yes (up to 30 readings)
Response Time 2 seconds
Auto Shut-off Yes (after 150 seconds)
Low Battery Indicator Yes
Power Supply 2 x AAA Batteries
Laser Class Class II
Product Certifications CE, RoHS
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range <85% RH
Dimensions 4.4 x 1.9 x 1.1" (112 x 50 x 25mm)
Weight 3.5oz (100g)

What's included with the REED R8004
Laser Distance Meter
Carrying Case
