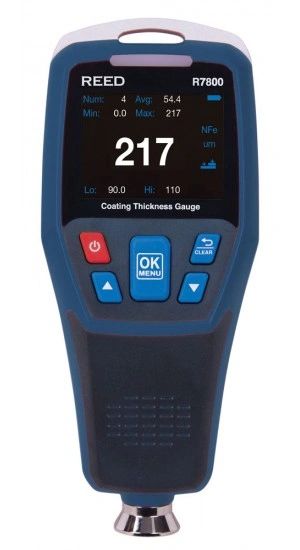

REED R7800 Coating Thickness Gauge


Automatically identifies ferrous and non-ferrous substrates

REED R7800 Offers

This coating thickness gauge is designed for non‐invasive coating thickness measurements. The R7800 features zero or two point calibration, user adjustable high/low alarms and a USB interface to further analyse results in the included software.


  • Automatically detects ferrous and non-ferrous substrates
  • Easy-to-read color LCD display
  • 360° screen rotation allows users to view measured readings from any angle
  • Durable gauge and probe construction
  • Zero and two-point calibration ensures measurement accuracy
  • Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
  • Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
  • Internal memory stores up to 500 groups of data
  • View stored data, charts or real-time measurement with software
  • Low battery indication and auto shut off

REED R7800 Specifications

Measuring Range 0 to 1250μm

0.1 to 49.2mils

Accuracy 0 to 1250μm: ±3% +1μm

0 to 49.21mils: ±3% +0.04mils

Resolution 0 to 99.9μm: 0.1μm

100 to 1250μm: 1μm

0 to 4.99mils: 0.01mils

5.0 to 49.2mils: 0.1mils

Measurement Modes Single and Continuous

Display 4-digit color LCD display

Resolution 320 x 240 pixels

Backlit Display Yes (5 levels)

Min/Max/Average Readings Yes

Minimum Curvature Radius 5mm (196.85mils)

Minimum Area Diameter 20mm (787.40mils)

Minimum Substrate Thickness 0.5mm (19.69mils)

Auto Shut-Off Yes (After 5 minutes)

Low Battery Indicator Yes

Power Supply 2 x AA Batteries

Internal Memory Yes (Up to 500 groups)

PC Connectivity USB Cable

Software Yes

Software OS Compatibility Windows 7/8/10/11

Product Certifications CE

Refresh Rate 0.5 seconds (continuous mode)

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Operating Humidity Range ≤80%RH

Dimensions 5.9 x 2.6 x 1.38" (152 x 65 x 35mm)

Weight 6.35oz (180g)

What's included with the REED R7800

  • Coating Thickness Gauge
  • Ferrous Substrate
  • Non-Ferrous Substrate
  • 5 Reference Films
  • USB Cable
  • Wrist Strap
  • Sensor Cover
  • Batteries
  • Hard Carrying Case

Ideal Applications for the REED R7800

  • Verification of paint thickness
  • Automotive industry
  • Plating thickness
  • Industrial manufacturing
  • Metal processing
  • Aerospace
  • Scientific research
