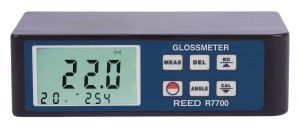

• REED R7700 Gloss Meter


    Compact gloss meter allows for easy one-handed, 3-angle (20/ 60/ 85°) operation.

    REED R7700 Offers

    This gloss meter is capable of measuring up to 200 gloss units (GU) from 3 different angles. The R7700 is designed to meet international gloss measurement standards (ASTMD523, ASTMD1455, ASTMC584 and ASTMD2457), features a backlit LCD and internal memory capable of storing the last 254 measurements. The R7700 can be used in various applications including; automobile paint inspection, stone & tile manufacturing and paint and ink quality assurance processes.


    • Compact design allows for one-handed operation
    • Multi-angle measurement (20/ 60/ 85°)
    • Backlit LCD display
    • Auto calibration
    • Internal memory stores last 254 data points
    • Built-in rechargeable battery
    • Designed to meet ASTMD523, ASTMD1455, ASTMC584 and ASTMD2457 international standards

    REED R7700 Specifications

    Measuring Range 0.1 to 200 GU

    Measuring Geometry 20° / 60° / 85°

    Accuracy ±1.0 GU

    Resolution 0.1 GU

    Repeatability ±0.5 GU

    Measuring Area 7x14mm

    Display LCD

    Backlit Display Yes

    Auto Shut-off Yes (after 30 mins)

    Low Battery Indicator Yes

    Power Supply Rechargeable Lithium Battery

    Internal Memory Yes (up to 254 datapoints)

    Product Certifications CE / RoHS

    Operating Temperature 32 to 104°F (0 to 40°C)

    Storage Temperature -4 to 140°F (-20 to 60°C)

    Operating Humidity Range 0 to 85%

    Dimensions 5.5 x 1.8 x 3" (140 x 45 x 75 mm)

    Weight 10.76oz (305g)

    What's included with the REED R7700

    • Gloss Meter
    • AC Adapter
    • Calibration Standard
    • Cleaning Cloth
    • Hard Carrying Case

    deal Applications for the REED R7700

    • Floor maintenance
    • Surface quality assurance
    • Stone and tile manufacturing
    • Paint and ink manufacturing
    • Automobile paint inspection
