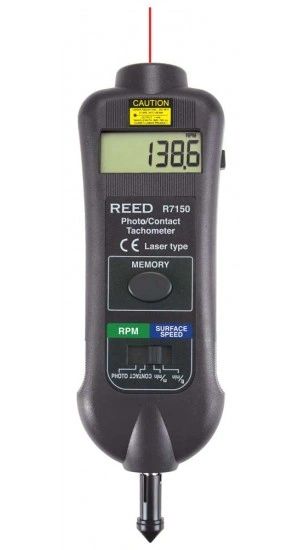

REED R7150 Professional Combination Contact / Non-Contact Laser Photo Tachometer


This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meters per minute) / ft/min (feet per minute) with included contact adapters. The built-in laser for non-contact measurement provides accurate measurements up to 6.5 ft (2000 mm) away from target.


  • Dual function unit with both contact and non-contact capabilities
  • Provides fast and accurate RPM measurements of rotating objects and surface speed measurements MPM (meter per min) and FPM (feet per min)
  • Laser provides improved accuracy at a greater distance
  • Internal memory recalls min/max and last value
  • Large LCD Display reverses depending on measurement mode


RPM Range (Contact)0.5 to 19,999
RPM Range (Photo)10 to 99,999
Surface Speed Range 0.05 to 1,999.9 m/min
0.2 to 6,560 ft/min
ResolutionPhoto: 0.1 RPM (≤999.9) / 1 RPM (>1000)
Contact: 0.1 RPM (≤999.9) / 1 RPM (>1000)
Surface: 0.01 m/min (≤99.9) / 0.1 m/min (≥100) / 0.01 ft/min (≤999.9) / 1 ft/min (≥1000)
Basic Accuracy±(0.05% + 1 dgt.)
General Specifications
Visible IndicatorYes (Laser)
Target Distance6.5ft (2000mm) (Photo)
Response Time<1 sec
Sampling TimePhoto: 1 sec (over 60 RPM)
Contact: 1 sec (over 6 RPM)
Display Size/Type5 Digit LCD Display
Auto shut-offYes
Internal MemoryMax, Min and Last
Laser ClassClass II
Low Battery IndicatorYes
Power Supply4 x AA Batteries
Product CertificationsCE
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity10-90%
Dimensions8.5 x 2.6 x 1.5" (215 x 65 x 38 mm)
Weight10.6oz (300g)
