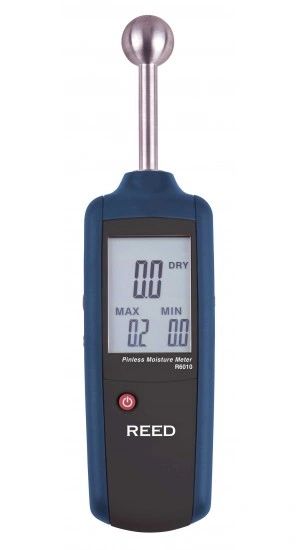

REED R6010 Pinless Moisture Meter


This non-destructive moisture detector measures moisture content in tiles, wood and building materials by simply running the probe over the surface area. The R6010 is capable of measuring up to 1.6" (40mm) and features user adjustable alarms and built-in self calibrating functions.


  • Non-invasive measurements, run sensor over surface being tested without scratching or penetrating the surface
  • Classifies moisture status as: dry, at risk or wet
  • Detects moisture content in various building materials
  • Measurement depth from 0.8" (20mm) to 1.6" (40mm)
  • Data Hold and Min/Max functions
  • User adjustable alarms with audible and visual indicators
  • Large backlit LCD display
  • Low battery indicator and auto shut-off


Measuring Range0 - 100% Moisture Content
Depth Detection0.8 to 1.6" (20 to 40mm)
Sensor TypePinless
DisplayLCD Display
Backlit DisplayYes
Data HoldYes
Auto Shut-offYes (30 secs)
Low Battery IndicatorYes
Power Supply3x AAA Batteries
Product CertificationsCE
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature14 to 140°F (-10 to 60°C)
Operating Humidity Range0-85%
Dimensions9.5 x 2.5 x 1.2” (242 x 63 x 30mm)
Weight8 oz (226g)
