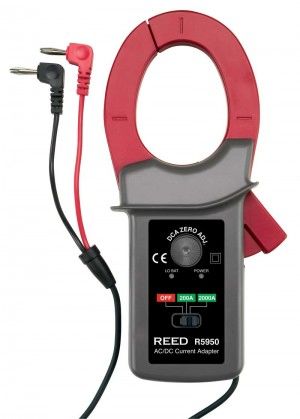

REED R5950 AC/DC Current Adapter, 2000A


This AC/DC current adapter can be attached to a multimeter and measures up to 2000A. The R5950 features integrated banana plugs, zero adjustment dial and a 3' cable.


  • Dual range (200A, 2000A)
  • Low battery indicator
  • Zero adjustment dial
  • Integrated banana plugs
  • 2% basic accuracy
  • CE certified
  • CAT. III 600V safety rating


AC/DC Current
Range 200A, 2000A
Accuracy 200A: ±(1.5% rdg + 1A)
2000A: ±(2% rdg + 5A)
AC Current Output 1mV/A
General Specifications
Jaw Opening 2.2" (56mm)
Battery 9V
Low Battery Indicator Yes
Overvoltage Category CAT.III 600V
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 8.3 x 2.5 x 1.3" (210 x 64 x 33mm)
Weight 0.91lb (414g)
