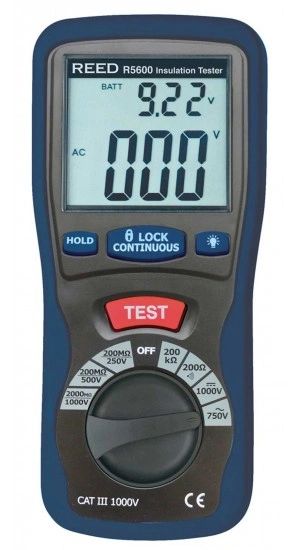

REED R5600 Insulation Tester

$249.00

Multi-function insulation tester with backlit dual display, double molded plastic housing and lock function for hands-free operation.


REED R5600 Offers

This insulation tester is capable of measuring 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ. The R5600 features an easy-to-read backlit dual display, durable double molded plastic housing and lock function with hanging strap for handfree operation in the field.

Features

  • Backlit dual displays insulation resistance and test voltage simultaneously
  • 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ
  • Lock function and hanging strap for handfree operation
  • Lo Ω function for testing connections
  • Datahold function
  • Double molded plastic housing for added protection
  • Low battery indicator and auto shut off
  • Cat. III, 1000V safety rating


REED R5600 Specifications

Voltage

Ranges 250V, 500V, 1000V

Accuracy DC: ±(0.8% rdg. + 3 dgt.)

AC: ±(1.2% rdg. + 10 dgt.)

Resolution 1V

OHMS

Ranges 200Ω, 200kΩ

Accuracy ±(1.0% rdg. + 2 dgt.)

Resolution 0.1Ω, 0.1kΩ

Meg OHMS

Ranges 200MΩ/250V, 2000MΩ/500V, 0-1000MΩ/1000V, 1000-2000MΩ/1000V

Accuracy ±(3.0% rdg. + 5 dgt.)

Test Current: 250KΩ, 500KΩ, 1MΩ

Resolution 0.1MΩ, 1MΩ, 1mA

General Specifications

Range Selection Autoranging/Manual

Display LCD with dual display

Display Hold Yes

Sampling Rate 2.5 times/sec.

Backlit Display Yes

Continuity Check Audible signal if resistance ≤40Ω

Kick Stand Yes

Auto Power Off Yes (after 15 minutes)

Power Supply 6 AA Batteries

Low Battery Indicator Yes

Fuse Protection Yes

Replaceable Test Leads Yes

Overange Indicator Yes

Overvoltage Category CAT. III 1000V

Product Certifications CE

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Dimensions 7.9 x 3.6 x 2.0" (200 x 92 x 50mm)

Weight 25oz (700g)

What's included with the REED R5600

  • Insulation Tester
  • Test Leads
  • Alligator Clip
  • Hanging Strap
  • Hard Carrying Case
  • Batteries

Ideal Applications for the REED R5600

  • Power Tools
  • Appliances
  • Motors
  • Cables
