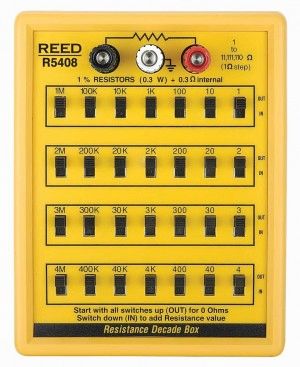

REED R5408 Resistance Decade Box
$119.00
This resistance decade box can be used to design and test circuits. The R5408 features slide switches that allow a user to easily add or subtract to quickly reach the desired resistance range. Once tested, a resistor indicated by the decade box can then be put into the circuit.
Features
- 1% Resistance substitution from 1 to 11,111,110Ω
- Excellent for circuit development
- 3 binding posts permit isolated substitutions
- 7 decade ranges of resistance
- Durable construction
Specifications
| Range | 1 to 11,111,110Ω, 7 ranges |
| Resolution | 1Ω increments |
| Accuracy | ±1% of reading |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 4.6 x 5.8 x 2.0" (117 x 147 x 52mm) |
| Weight | 0.7lb (320g) |
