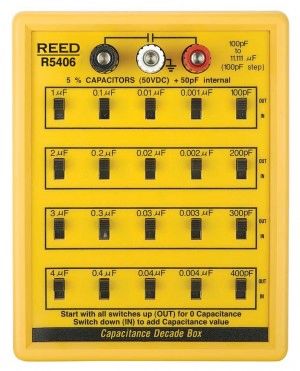

REED R5406 Capacitance Decade Box


Capacitance box with 5 decade ranges of capacitance.

REED R5406 Offers

This capacitance decade box can be used to design and test circuits. The R5406 features slide switches that allow a user to easily add or subtract to quickly reach the desired capacitance range. Once tested, a capacitor size indicated by the decade box can then be put into the circuit.


  • 5% capacitance substitution from 100pF to 11,111µF
  • Excellent for circuit development
  • 3 binding posts permit isolated substitutions
  • 5 decade ranges of capacitance
  • Durable construction

REED R5406 Specifications

Range 100 pF to 11,111 µF, 5 ranges

Resolution 100 pF per step

Operating Temperature 32 to 122°F (0 to 50°C)

Storage Temperature 14 to 122°F (-10 to 50°C)

Dimensions 4.6 x 5.8 x 2.0" (117 x 147 x 52mm)

Weight 0.7lb (320g)

What's included with the REED R5406

  • REED R5406 Capacitance Decade Box.
  • Ideal Applications for the REED R5406

    • Product Design
