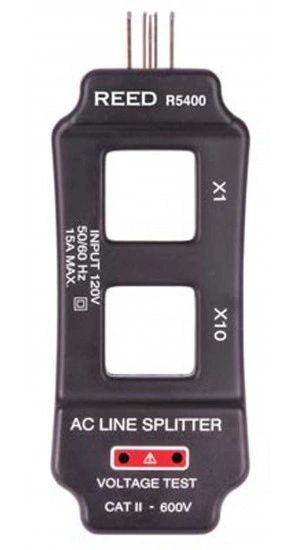

REED R5400 Line Splitter

Provides safe measurements of current without the need to separate conductors.

REED R5400 Offers

This AC line splitter enables a clamp meter user to measure AC current on a 2-wire or 3-wire power cord to 15A.

Features

• Enables user to measure AC current on a 2-wire or 3-wire power cord to 15A
• Fits clamp jaw size 0.75" (19mm) and above
• Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
• Two measurement sensitivity positions (1X and 10X)
• Voltage check function
• Cat. II 600V safety rating

REED R5400 Specifications

Voltage 120V

Frequency Range 50 to 60Hz

Current Max 15A

Wire Compatibility 2-wire or 3-wire

Overvoltage Category CAT. II 600V

Product Certifications CE

Operating Temperature 32 to 122°F (0 to 50°C)

Operating Humidity 0 to 85%

Storage Temperature -4 to 140°F (-20 to 60°C)

Dimensions 5.3 x 2  x 1" (133 x 51 x 25mm)

Weight 5.8oz (165
