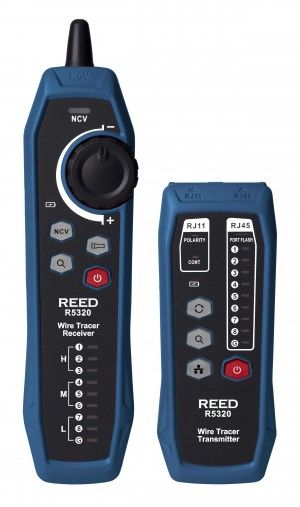

REED R5320 Wire Tracer and Circuit Testing Kit


Multi-purpose intelligent line tracer/tracker identifies and validates cables from source to termination quickly and accurately.

REED R5320 Offers

This versatile wire tracer is able to identify and test a variety of wires including RJ45 (Ethernet), RJ11 (Telephone) and any other non-energized wire with the included alligator clip adapter. The R5320 Wire Tracer and Circuit Testing Kit can perform a number of functions including; identifying and locating wires, cable/line connection validation, verifying telephone line continuity and line polarity. It also features a built-in non-contact voltage detector to quickly detect live voltage on electrical circuits found in residential, commercial and industrial buildings.


  • Test modes include; identifying and locating wires, validating cable/line connections, verifying telephone line continuity/line polarity
  • Modular adapters provide direct connection to RJ45 and RJ11 wiring
  • Alligator clip adapter allows for easy connection to non-terminated cables
  • Adjustable sensitivity wheel improves wire identification and eliminates false detection
  • Visual (flashing LEDs) and audible (pulsating beeper) indicators
  • Integrated flashlight supports applications in low lit environments
  • Built-in non-contact voltage detector
  • Earphone jack for loud environments (earphones sold separately)
  • Rechargeable batteries
  • Low battery indicator and auto shut-off

REED R5320 Specifications

Testing Modes RJ45 (Ethernet) Network cable tracing

RJ11 (Telephone) Line tracing

Miscellaneous Line/wire tracing (using RJ11/alligator clip adapter)

RJ45 (Ethernet) Network cable validation

RJ11 (Telephone) Line validation

Non-contact voltage detector


Port Flashing Port flashing and wire tracking can be turned on at same time

Wire Tracking Signal Frequency 125kHz

Test Speed Fast (2Hz); Slow (1Hz)

Network Wire Shielded/Unshielded

Open-Short Circuit Test Load <9kΩ: Short

Load >17kΩ: Open

Open Polarity Test Test range: DC: 5 to 70V or -70 to -5V

Input Protection 60VDC


Wire Tracking Sensitivity RJ11 ≤9842' (3000m)

RJ45 ≤328' (100m)

Input Impedance >100MΩ

General Specifications

Signal Mode Modulation signal (125kHz)

Visual Indicator Yes (LEDs)

Audible Indicator Yes (Pulsating beeper)

Sensitivity Settings Yes (Adjustable wheel)

Compatible Wire Type RJ-11, RJ-45, Alligator clips for connection to non-terminated wire

Non-Contact Voltage Detector Yes (40 to 1000VAC)

Earphone Jack Yes (3.5mm)

Built-in Flashlight Yes

Auto Shut-off Transmitter: Yes (after 60 mins)

Receiver: Yes (after 10 mins)

Power Supply 1050mAh rechargeable Li-ion battery

Charging Time Approx. 2 hours (Micro-USB)

Low Battery Indicator Yes

Battery Life Transmitter: >8 hours

Receiver: >5 hours

Operating Temperature 14 to 122°F (-10 to 50°C)

Operating Humidity Range 20 to 75%

Operating Altitude <6561' (2000m)

Product Certifications CE, RoHS

Dimensions Transmitter: 5.1 x 2 x 1.1" (130 x 51 x 28mm)

Receiver: 7.8 x 1.9 x 1.3" (197 x 48 x 34mm)

Weight Transmitter: 3.4oz (95g)

Receiver: 4.5oz (127g)

What's included with the REED R5320

  • Transmitter
  • Receiver
  • Micro-USB Charging Cable
  • RJ11 Adapter Cable
  • RJ45 Adapter Cable
  • RJ11 Alligator Clip Adapter Cable
  • Carrying Case
