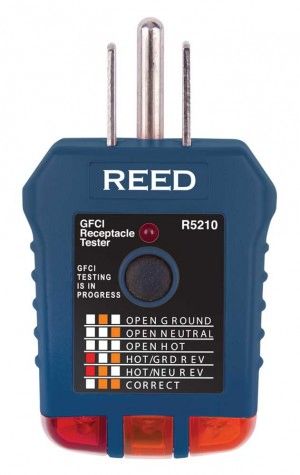

REED R5210 Receptacle Tester with GFCI


Check the status of and troubleshoot 3-wire circuits and GFCI receptacles.

REED R5210 Offers

This outlet tester quickly identifies faulty wiring. Plug the instrument into the receptacle under test and match the light pattern to the indicator chart to determine the fault. The R5210 features a built-in GFCI test to quickly verify GFCI outlets are functioning properly.


  • Compact design
  • Detects most common 3-wire receptacle issues
  • LED indicators identify 5 wiring faults
  • Status indicator chart
  • GFCI trip test

REED R5210 Specifications

Voltage Range 110 to 125V AC

Frequency Range 50 to 60Hz

Current Max 15A

Receptacle Compatibility 3-wire with GFCI

Product Certifications CE, UL

Operating Temperature 32 to 122°F (0 to 50°C)

Operating Humidity 0 to 85%

Storage Temperature -4 to 140°F (-20 to 60°C)

Dimensions 3 x 2 x 1" (75 x 51 x 25mm)

Weight 1oz (23g)

What's included with the REED R5210

  • REED R5210 Receptacle Tester with GFCI
