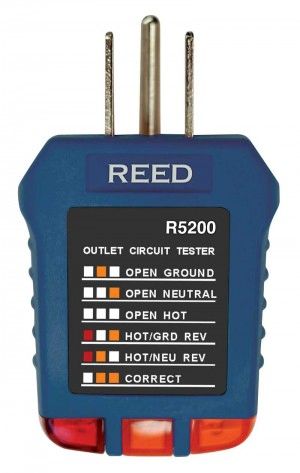

REED R5200 Receptacle Tester


This outlet tester quickly identifies faulty wiring. Simply plug the instrument into the receptacle under test and match the light pattern to the printed chart to determine the fault.


  • Compact design
  • Detects most common 3-wire receptacle issues
  • LED indicators identify 5 wiring faults
  • Status indicator chart
  • CE and UL approved
  • Durable plastic housing


Voltage Range110 to 125V AC
Frequency Range50 to 60Hz
Current Max15A
Receptable Compatibility3-wire
Product CertificationsCE, UL
Operating Temperature32 to 122°F (0 to 50°C)
Operating Humidity0 to 85%
Storage Temperature-4 to 140°F (-20 to 60°C)
Dimensions3 x 2 x 1" (75 x 51 x 25mm)
Weight1oz (23g)
