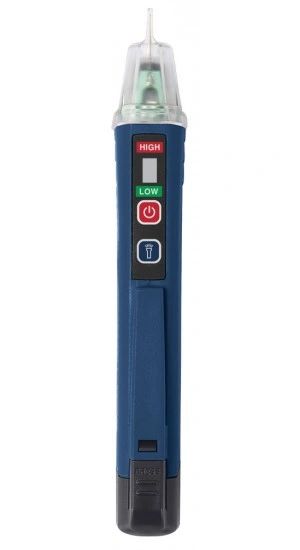

REED R5110 Non-Contact Voltage Detector with Flashlight


REED R5110 Non-Contact Voltage Detector with Flashlight

REED R5110 Offers

This Voltage Detector has the ability to detect the presence of AC voltage from a safe distance. The R5110 features two voltage ranges allowing it to detect both high (90 to 1000V) and low (24 to 1000V) AC voltage wiring.


  • Suitable for receptacles or against insulated wire
  • Double insulated housing for increased safety
  • Audible (buzzer) and visual (LED) indicators
  • Built-in flashlight
  • Pocket clip
  • Auto shut off
  • Cat. IV 1000V safety rating

REED R5110 Specifications

Voltage Range Low voltage mode: 24 to 1000VAC

High voltage mode: 90 to 1000VAC

Frequency Range 50 to 60Hz

Built-in Flashlight Yes

Pocket Clip Yes

Alarm Yes (audio/visual)

Auto Shut-off Yes (after 5 mins)

Low Battery Indicator Yes

Power Supply 2 x AAA batteries

Overvoltage Category CAT. IV 1000V

Product Certifications CE, ETL

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature -4 to 122°F (-20 to 50°C)

Operating Humidity Range 0 to 80%

Maximum Operating Altitude 6561' (2000m)

Dimensions 5.9 x 0.9 x 0.7" (150 x 23 x 18mm)

Weight 1.8 oz (50g)

What's included with the REED R5110

  • Non-Contact Voltage Detector
  • Batteries
