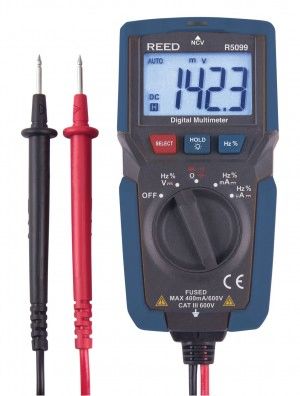

REED R5099 Compact Multimeter with NCV

Autoranging digital multimeter with built-in non-contact voltage (NCV) detector and 4,000 count backlight LCD display

REED R5099 Offers

This versatile compact-sized multimeter measures AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity. It also features a built-in non-contact voltage detector to quickly detect live voltage on electrical circuits found in residential, commercial and industrial buildings.

Features

• Measures AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity
• Built-in non-contact voltage detector and double molded plastic housing
• 4,000-count backlit LCD display
• Low battery indicator and auto shut-off
• CAT III 600V safety rating

REED R5099 Specifications

AC/DC Voltage

Range AC: 4, 40, 400, 600V

DC: 400mV, 4, 40, 400, 600V

Accuracy AC: 4, 40V ±(1.2% rdg. + 5 dgt.)

400, 600V ±(2% rdg.+ 10 dgt.)

DC: 400mV ±(1% rdg.+ 8 dgt.)

4, 40V ±(0.5% rdg.+ 5 dgt.)

400, 600V ±(0.8% rdg.+ 5 dgt.)

Resolution AC: 0.01, 0.01, 0.1, 1V

DC: 0.1mV, 0.001, 0.01, 0.1, 1V

AC/DC Current

Range 400μA, 4, 40, 400mA

Accuracy AC: 400μA, 4, 40, 400mA ±(2% rdg. + 8 dgt.)

DC: 400μA, 4, 40, 400mA ±(1.8% rdg. + 5 dgt.)

Resolution 0.1μA, 0.001, 0.01, 0.1mA

Resistance

Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ

Accuracy 400Ω, 4, 40, 400kΩ: ±(1% rdg. + 5 dgt.)

4MΩ: ±(1.2% rdg. + 10 dgt.)

40MΩ: ±(2% rdg. + 10 dgt.)

Resolution 0.1, 1, 10, 100Ω, 1, 10kΩ

Capacitance

Range 50, 500nF, 5, 50, 100μF

Accuracy 50nF: ±(4% rdg.+ 30 dgt.)

500nF: ±(3% rdg. + 15 dgt.)

5, 50, 100μF: ±(4% rdg. + 10 dgt.)

Resolution 0.01, 0.1, 1, 10, 100nF

Frequency

Range 9.999Hz to 60kHz

Accuracy ±(0.1% rdg. + 5 dgt.)

Resolution 0.001Hz to 0.001MHz

General Specifications

Range Selection Autoranging

Display 4,000 count LCD display

Display Hold Yes

Diode Test Yes

Continuity Check Audible signal if resistance ≤10Ω

Non-Contact Voltage Detector Yes

Auto Power Off Yes (after 30 minutes)

Power Supply 2 x AAA

Low Battery Indicator Yes

Fuse Protection Yes

Replaceable Test Leads No

Overange Indicator Yes (OL)

Overvoltage Category CAT III 600V

Product Certifications CE

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature 14 to 122°F (-10 to 50°C)

Dimensions 4.4 x 2.3 x 1.4" (112 x 58 x 35mm)

Weight 6.3oz (180g)
