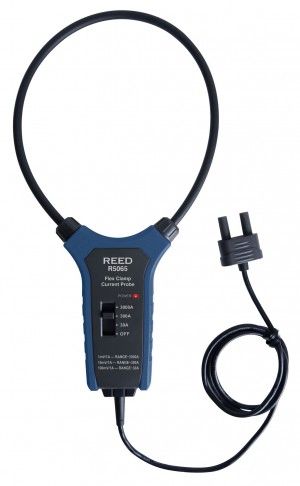

REED R5065 3000A Flexible 18" Current Probe


18" flexible current probe with ergonomic design provides measurement flexibility up to 3000A AC.

REED R5065 Offers

The R5065 is an 18" flexible current probe that measures up to 3000A AC current while providing measurement flexibility. The large loop size and thin cross section provides access to large conductors in tight spaces. Recommended for use with the REED R5055 Clamp Meter as well as any clamp meter with standard banana jacks.


  • Expands clamp meter measurement range to 3000A AC
  • Flexible current probe provides access to large conductors in tight spaces
  • Ergonomic design fits in your hand and can be used while wearing protective gloves
  • Durable double molded plastic housing
  • Cat. IV 600V safety rating

REED R5065 Specifications

AC/DC Current

Range 30, 300, 3000A

Accuracy AC: ±(3% rdg. +5 dgt.)

Resolution 0.1, 1, 10A

General Specifications

Power Supply 3 x AAA batteries

Low Battery Indicator Yes

Jaw Opening 18" (457.2mm)

Cable Length 39" (991mm)

Overvoltage Category CAT. IV 600V

Product Certifications CE, ETL

Operating Temperature 32 to 122°F (0 to 50°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Dimensions 10.5 x 4.7 x 1.3" (267 x 119.4 x 34mm)

Weight 9.2oz (260g)

What's included with the REED R5065

  • Flexible 18" Current Probe
  • BNC Adapter
  • Batteries

Ideal Applications for the REED R5065

  • Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems
  • Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems
