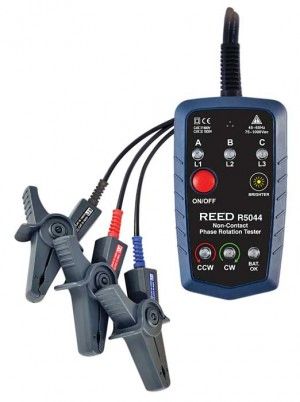

REED R5044 Non-Contact Phase Rotation Tester


LEDs display motor rotation and phase status.

REED R5044 Offers

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5044 features non-metal alligator clips that allow for safe non-contact measurements and includes back mounted magnets for easy measurement.


  • Non-contact voltage sensing alligator clips promote safety
  • Color-coded leads (red, black, blue) meet IEC 60446 standards
  • LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
  • Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
  • Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
  • Durable housing with magnets frees hands and allows for easy measurement
  • Low battery indicator

REED R5044 Specifications

Voltage Detection Method Static Induction

Voltage Range 75 to 1000VAC

Frequency 45 to 65Hz

General Specifications

Cable Length 31.5" (800mm)

Cable Color Red (L1)/ Black (L2)/ Blue (L3)

Indicators Audible (Buzzer)/ Visual (LED)

Adjustable LED Brightness Yes

Max. Alligator Clip Jaw Opening 1.18" (30mm)

Magnetic Mounts Yes

Auto Shut Off Yes (after 5 minutes without power detection)

Power Supply 9V battery

Low Battery Indicator Yes

Overvoltage Category CAT. III 1000V, CAT. IV 600V

Product Certifications CE

Operating Temperature 14 to 122°F (-10 to 50°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Operating Humidity Range 10 to 80%

Dimensions 5 x 2.8 x 1.8" (128 x 72 x 46 mm)

Weight 13.2 oz (375 g)

Ideal Applications for the REED R5044

  • Installing and troubleshooting 3-phase motors, pumps and controls

What's included with the REED R5044

  • Non-Contact Phase Rotation Tester
  • 3 x Color Coded Cables with Alligator Clips
  • Battery
  • Soft Carrying Case
