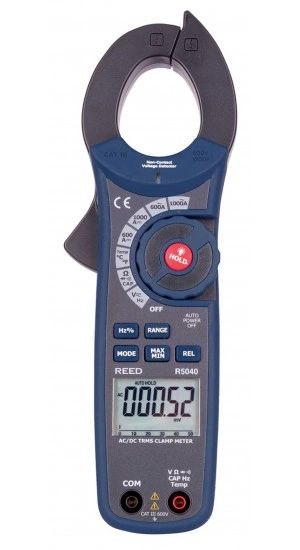

REED R5040 1000A AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, True RMS
$159.00
This autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD display with a 61-segment analog bargraph and double molded plastic housing, the R5040 keeps track of min/max readings and includes a non-contact voltage detector built into the clamp tip.
Features
- Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
- 50000-count backlit LCD display and analog bargraph
- Low battery and overrange indicators
- Built-in non-contact voltage detector with LED indicator
- True RMS AC measurements
- Min/Max, display hold and relative mode
- Diode test and continuity check functions
- Durable double molded plastic housing
- Cat. III 600V safety rating
Specifications
| AC/DC Current | |
| Range | 500, 1000A |
| Accuracy | AC: ±(2.8% rdg. +30 dgt.) DC: ±(2.5% rdg. +30 dgt.) |
| Resolution | 0.01, 0.1, 1A |
| AC/DC Voltage | |
| Range | AC: 500mV, 5, 50, 500, 750V DC: 500mV, 5, 50, 500, 1000V |
| Accuracy | AC: ±(1.0% rdg. +30 dgt.) DC: ±(0.1% rdg. +4 dgt.) |
| Resolution | AC/DC: 0.1mV, 0.001, 0.01, 0.1, 1V |
| Resistance | |
| Range | 500Ω, 5, 50, 500kΩ, 5, 50MΩ |
| Accuracy | ±(1.0% rdg. +4 dgt.) 0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ |
| Capacitance | |
| Range | 500, 5000nF, 50, 500µF, 5mF |
| Accuracy | ±(3.5% rdg. +10 dgt.) |
| Resolution | 0.01, 0.1nF, 0.01, 0.1μF, 0.1mF |
| Frequency | |
| Range | 10kHz |
| Accuracy | ±(0.3% rdg. +2 dgt.) |
| Resolution | 0.001Hz |
| Temperature | |
| Range | -148 to 1832°F (-100 to 1000°C) |
| Accuracy | ±(1.0% rdg. + 4.5°F) ±(1.0% rdg. + 2.5°C) |
| Resolution | 1°F, 1°C |
| General Specifications | |
| Range Selection | Autoranging / Manual |
| True RMS | Yes |
| Display | 50,000 count LCD display |
| Display Hold | Yes |
| Max/Min | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Backlit Display | Yes |
| Analog Bargraph | Yes (61-segment) |
| Continuity Check | Audible signal if resistance <35Ω |
| Duty Cycle | Yes |
| Non-Contact Voltage Detector | Yes |
| Autoshut off | Yes (after 15 mins) |
| Power Supply | 9V Battery |
| Low Battery Indicator | Yes |
| Jaw Opening | 1.5" (40mm), up to 500 MCM |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 9.1 x 3.0 x 1.5" (232 x 77 x 39 mm) |
| Weight | 9.6oz (271g) |
