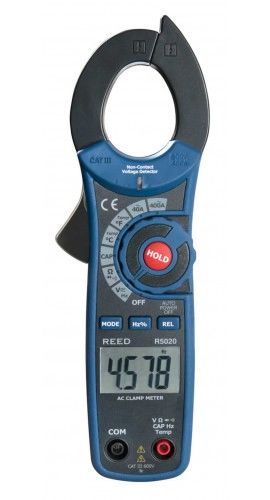

• REED R5020 400A AC Clamp Meter with Temperature and Non-Contact Voltage Detector


    REED R5020 Offers
    This compact autoranging clamp meter is capable of measuring AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring double molded plastic housing, the R5020 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.


    Measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature
    4000-count LCD display with low battery and overrange indicators
    Built-in non-contact voltage detector with LED indicator
    Display hold and relative mode
    Diode test and continuity check functions
    Durable double molded plastic housing
    Cat. III 600V safety rating

    REED R5020 Specifications
    AC Current
    Range 40, 400A
    Accuracy AC: ±(2.5% rdg. + 8 dgt.)
    Resolution 0.01, 0.1A
    AC/DC Voltage
    Range AC: 4, 40, 400, 600V
    DC: 400mV, 4, 40, 400, 600V
    Accuracy AC: ±(1.8% rdg. + 8 dgt.)
    DC: ±(1.5% rdg. + 2 dgt.)
    Resolution AC: 0.001, 0.01, 0.1, 1V
    DC: 0.1mV, 0.001, 0.01, 0.1, 1V
    Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ
    Accuracy ±(1.5% rdg. + 2 dgt.)
    0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ
    Range 40, 400nF, 4, 40, 100µF
    Accuracy ±(3% rdg. + 5 dgt.)
    Resolution 0.01, 0.1nF, 0.01, 0.1μF
    Range 10MHz
    Accuracy ±(1.2% rdg. + 2 dgt.)
    Resolution 0.01Hz
    Range -4 to 1400°F (-20 to 760°C)
    Accuracy ±(3.0% rdg. + 9°F)
    ±(3.0% rdg. + 5°C)
    Resolution 1°F, 1°C
    General Specifications
    Range Selection Autoranging / Manual
    Display 4,000 count LCD display
    Display Hold Yes
    Relative Mode Yes
    Diode Test Yes
    Continuity Check Audible signal if resistance <150Ω
    Duty Cycle Yes
    Non-Contact Voltage Detector Yes
    Autoshut off Yes (after 15 mins)
    Power Supply 2 x AAA
    Low Battery Indicator Yes
    Jaw Opening 1.2" (30mm), up to 350 MCM
    Overvoltage Category CAT. III 600V
    Product Certifications CE
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Dimensions 7.9 x 2.6 x 1.5" (200 x 66 x 37 mm)
    Weight 7.2oz (205g)

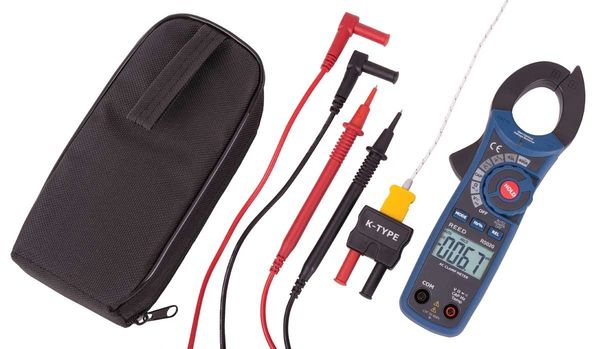

    What's included with the REED R5020
    AC Clamp Meter
    Test Leads
    Thermocouple Wire Probe
    Thermocouple Adapter
    Soft Carrying Case
