REED R5015 True RMS Mini Clamp Meter, 60A AC/DC

Mini clamp meter featuring high resolution (0.1mA) and accuracy at low currents.

REED R5015 Offers

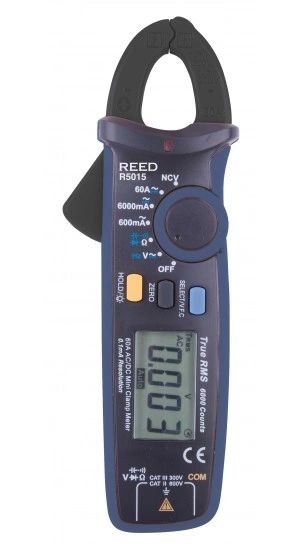

This compact auto-ranging mA clamp meter is capable of measuring AC/DC current/voltage, resistance and capacitance. The R5015 features high resolution AC/DC mA readings on a 6000-count backlit LCD display, diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

Features

• Measures AC/DC current/voltage, resistance and capacitance
• High resolution 0.1 mA (AC) and 1 mA (DC)
• True RMS for AC current/voltage
• 6000-count backlit LCD display
• Built-in non-contact voltage detector with LED indicator
• V.F.C (variable frequency control) mode for air-conditioner maintenance and diagnostics
• Low battery and over range indicators
• Diode test and continuity check functions
• Durable double molded plastic housing
• CAT. II 600V, CAT. III 300V safety rating
• Auto shut-off

REED R5015 Specifications

AC/DC Current

Range AC: 600mA, 6000mA, 60A / V.F.C 600mA-60A

DC: 6000mA, 60A

Accuracy AC (@ 50/60Hz): 600mA

±(1.5% rdg. +10 dgt.)

6000mA±(2.5% rdg. +5 dgt.)

60A±(2% rdg. +5 dgt.)

V.F.C ±(4% rdg. +10 dgt.)

DC: 6000mA±(2% rdg. +5 dgt.)

60A±(2% rdg. +3 dgt.)

Resolution AC: 0.1mA, 1mA, 0.01A / 0.1mA, 0.01A

DC: 1mA, 0.01A

AC/DC Voltage

Range AC: 6, 60, 600V / V.F.C 200-600V

DC: 600mV, 6, 60, 600V

Accuracy AC: ±(0.8% rdg. +3 dgt.) / ±(4.0% rdg. +3 dgt.)

DC: 600mV ±(0.7% rdg. +5 dgt.) ±(0.7% rdg. +3 dgt.)

Resolution AC: 1mV, 10mV, 0.1V, 1V / 0.1V

DC: 10µV, 1mV, 10mV, 0.1V

Resistance

Range 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ

Accuracy 600Ω: ±(1% rdg. +2 dgt.)

6/60/600kΩ: ±(0.8% rdg. +2 dgt.)

6MΩ: ±(1.2% rdg. +3 dgt.)

60MΩ: ±(1.5% rdg. +5 dgt.

Resolution 1pF, 10pF, 100pF, 1nF, 10nF, 100nF, 1μF, 10μF

Capacitance

Range 6.2nF, 62nF, 620nF, 6.2μF, 62μF,

620μF, 6.2mF, 62mF

Accuracy 6.200nF ±(4%+10)

62.00nF~ 620.0μF ±(4%+5)

6.200mF~ 62.00mF ±10%

Resolution 1pF, 10pF, 0.1µF, 1µF, 10µF

General Specifications

Range Selection Autoranging

True RMS Yes

Display 6,000 count LCD display

Display Hold Yes

Zero Push Button Adjustment Yes

Diode Test Yes

Backlit Display Yes

Overrange Indicator Yes

Continuity Check Audible signal if resistance <10Ω

Non-Contact Voltage Detector Yes

Autoshut off Yes (after 15 mins)

Power Supply 2 AAA Batteries

Low Battery Indicator Yes

Jaw Opening 0.67" (17mm)

Overvoltage Category CAT. II 600V, CAT. III 300V

Product Certifications CE, ETL, RoHS

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature 14 to 122°F (-10 to 50°C)

Dimensions 6.9x 2.4 x 1.3" (175 x 60 x 33.5 mm)

Weight 6oz (170g)

What's included with the REED R5015

• R5015 mA Clamp Meter
• Test Leads
• Batteries
• Soft Carrying Case

Ideal Applications for the REED R5015

Applications

• Verifying industrial processes involving mA instrumentation
• Maintenance of variable frequency driven air conditioning systems
