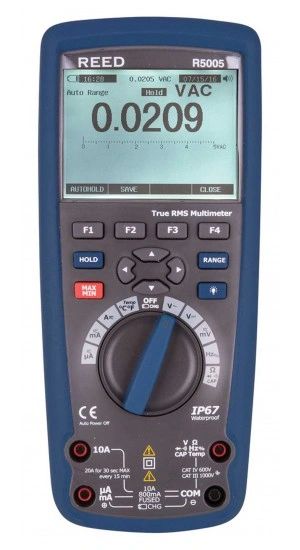

REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter

$329.00

The REED R5005 True RMS Industrial Multimeter is an full featured DMM capable of data logging and measuring multiple AC/DC signals simultaneously. With a large LCD screen, analog bargraph and bluetooth capability the R5005 measures AC/DC voltage and current, resistance, capacitance, frequency and temperature.

Features

  1. Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  2. Measure voltage and current simultaneously on a large backlit LCD
  3. Record data and and review trends with included software
  4. Relative, Peak, Min/Max and data hold functions
  5. Waterproof (IP67) double molded plastic housing
  6. Cat. IV 600V, Cat. III 1000V safety rating

REED R5005 Specifications

AC/DC Voltage

Range AC: 50, 500mV, 5, 50, 500, 1000V

DC: 50, 500mV, 5, 50, 500, 1000V

Accuracy AC: 50/60Hz ±(0.3% rdg. + 25 dgt.)

<1 Khz ±(0.5% rdg. + 25 dgt.)

<5Khz ±(3% rdg. + 25 dgt.)

DC: 50mV ±(0.5% rdg. + 20 dgt.)

500mV, 5,50,500V ±(0.025% rdg. + 5 dgt.)

1000V ±(0.1% rdg. + 5 dgt.)

Resolution AC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V

DC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V

AC/DC Current

Range 500, 5000µA, 50, 500mA, 10A

Accuracy AC: 50/60Hz ±(0.6% rdg. + 25 dgt.)

<1 Khz ±(1.5% rdg. + 25 dgt.)

<5Khz ±(3% rdg. + 25 dgt.)

DC: 500, 5000µA, 50mA ±(0.1% rdg. + 20 dgt.)

500mA ±(0.15% rdg. + 20 dgt.)

10A ±(0.3% rdg. + 20 dgt.)

Resolution 0.01, 0.1µA, 0.001, 0.01mA, 0.001A

Resistance

Range 50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ

Accuracy 50Ω: ±(0.5% rdg. + 20 dgt.)

500Ω/ 5,50kΩ: ±(0.05% rdg. + 10 dgt.)

500kΩ: ±(0.1% rdg. + 10 dgt.)

5MΩ: ±(0.2% rdg. + 20 dgt.)

50MΩ: ±(2% rdg. + 20 dgt.)

Resolution 0.001, 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.01, 0.001MΩ

Capacitance

Range 5, 50, 500nF, 5, 50, 500µF, 10mF

Accuracy 5, 50,500nF, 5,50µF ±(2%+40 dgt.)

500µF, 10mF ±(5%+40 dgt.)

Resolution 0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1µF, 0.01mF

Frequency

Range 50, 500Hz, 5, 50, 500kHz, 5, 10MHz

Accuracy ±(0.01%+10 dgt.)

Resolution 0.001, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001MHz

Temperature

Range -58 to 1832°F (-50 to 1000°C)

Accuracy ±(1.0% rdg. + 4.5°F)

±(1.0% rdg. + 2.5°C)

Resolution 1°F, 1°C

General Specifications

Range Selection Autoranging/Manual

True RMS Yes

Measure AC/DC signals simultaneously Yes

Display 50,000 count LCD display

Display Hold Yes

Max/Min Yes

Peak Hold Yes

Relative Mode Yes

Diode Test Yes

Recording Capabilities Yes (Over 2 hr recording time)

Wireless Connectivity Yes (Bluetooth via software)

Backlit Display Yes

Digital Analog Bargraph Yes

Continuity Check Audible signal if resistance ≤25Ω

Duty Cycle Yes (0.1 - 99.9%)

Kick Stand Yes

Auto Power Off Yes (after 15 minutes)

Power Supply Li-ion Rechargeable Battery

Low Battery Indicator Yes

Fuse Protection Yes

Replaceable Test Leads Yes

Software OS Compatibility Windows XP / 7 / 8 / 10

Overvoltage Category CAT. IV 600V, CAT. III 1000V

Product Certifications CE, IP67

Operating Temperature 32 to 122°F (0 to 50°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Dimensions 8.7 x 3.8 x 2.4" (220 x 96 x 60mm)

Weight 22oz (631g)
