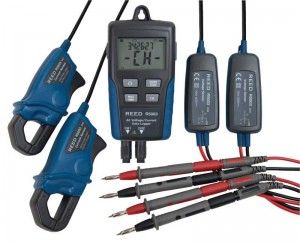

REED R5003 Dual Input True RMS AC Voltage/Current Datalogger
Simultaneously measure 2 AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input. The R5003 can operate remotely with batteries or be plugged in with the included AC adapter. Stored measurements can be downloaded via USB interface and either analyzed with the included software or exported to Microsoft Excel.
Features
- Datalog up to 256,000 AC voltage and current measurements
- Dual input measures 2 voltage/current measurements or 1 of each
- LCD simultaneously displays time/date, current readings and Max/Min readings
- User adjustable sample rate from 1 sec to 24 hrs
- High and low alarms
- Download measurements via USB interface and analyze results with included software
- Magnetic back allows instrument and sensors to be secured firmly in a variety of locations
- Low battery indicator and auto shut off
Specifications
Test Voltage | |
Ranges |
500V, 1000V, 2500V, 5000V |
Accuracy |
±2.5% of reading |
Insulation Resistance | |
Ranges |
0 to 6MΩ, 0 to 60MΩ, 0 to 600MΩ, 0 to 6GΩ, 0 to 60GΩ |
Accuracy |
±2.5% of reading |
AC/DC Voltage | |
Range |
0 to 600V |
Accuracy |
±1% of reading |
Resistance | |
Range |
0 to 600Ω |
Accuracy |
±1.5% of reading |
General Specifications | |
Range Selection |
Manual / Autoranging |
Display |
6000 count LCD display with bargraph |
Max/Min, Peak, Relative and Data Hold Functions |
Yes |
Sampling Rate |
2.5 times/sec. |
Backlit Display |
Yes |
Analog Bargraph |
Yes |
Auto Power Off |
Yes (after 20 minutes) |
Continuity Buzzer |
Yes (< 50Ω) |
Power Supply |
8 C Batteries or AC Adapter (included) |
Low Battery Indicator |
Yes |
Fuse Protection |
Yes |
Overvoltage Category |
CAT. IV 600V |
Product Certifications |
CE |
Operating Temperature |
32 to 104°F (0 to 40°C) |
Storage Temperature |
-4 to 140°F (-20 to 60°C) |
Dimensions |
7.8 x 5.8 x 3.4" (198 x 148 x 86mm) |
Weight |
3lbs (1.5kg) |
