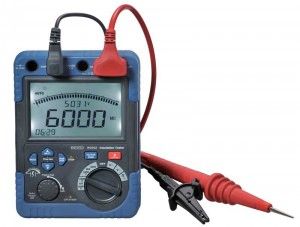

REED R5002 Digital High Voltage Insulation Tester


This high voltage insulation tester is capable or testing voltages up to 5000V and measures insulation resistance up to 60GΩ. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity.


  • Test Voltages of 500V, 1000V, 2500V, and 5000V
  • Measure Insulation Resistance to 60GΩ
  • Large backlit LCD display with analog bargraph
  • Timer function for insulation resistance measurements (1 to 15min)
  • AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions
  • Polarization index measurement (PI)
  • Dielectric absorption ratio measurements (DAR)
  • Max/Min, Peak, Relative value and Data Hold functions
  • Cat. IV 600V safety rating
  • Low battery indicator and auto shut off


Test Voltage
Ranges 500V, 1000V, 2500V, 5000V
Accuracy ±2.5% of reading
Insulation Resistance
Ranges 0 to 6MΩ, 0 to 60MΩ, 0 to 600MΩ, 0 to 6GΩ, 0 to 60GΩ
Accuracy ±2.5% of reading
AC/DC Voltage
Range 0 to 600V
Accuracy ±1% of reading
Range 0 to 600Ω
Accuracy ±1.5% of reading
General Specifications
Range Selection Manual / Autoranging
Display 6000 count LCD display with bargraph
Max/Min, Peak, Relative and Data Hold Functions Yes
Sampling Rate 2.5 times/sec.
Backlit Display Yes
Analog Bargraph Yes
Auto Power Off Yes (after 20 minutes)
Continuity Buzzer Yes (< 50Ω)
Power Supply 8 C Batteries or AC Adapter (included)
Low Battery Indicator Yes
Fuse Protection Yes
Overvoltage Category CAT. IV 600V
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)
Weight 3lbs (1.5kg)
