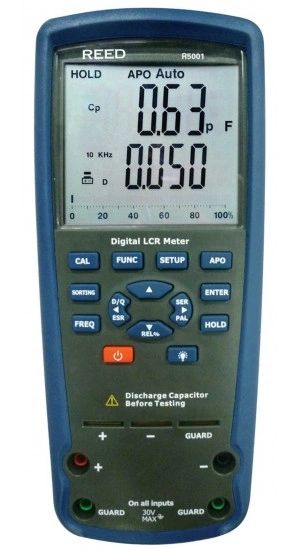

REED R5001 Passive Component LCR Meter
$269.00
This LCR meter measures inductance, capacitance and resistance with secondary parameters such as dissipation factor (D), quality factor (Q), phase angle (Ø) and equivalent series/parallel resistance (ESR or Rp). The R5001 features a large easy-to-read LCD display with backlight, and data hold/relative functions.
Features
- Measures inductance, capacitance and resistance
- Autoranging for AC impedance and DE resistance measurement
- Auto LCR smart check and measurement
- Series/Parallel modes
- Ls/Lp/Cp with D/Q/Ø/ESR parameters
- Support DCR mode 200Ω to 200MΩ
- High accuracy with 4 / 5 terminal Kelvin measurement
- 10kHz testing frequency and up to 100kHz output frequency
- Large backlit dual LCD display
- Data hold and relative functions
- Low battery indication with auto power off
Specifications
| Inductance (F=1kHz) | |
| Ranges | 2000.0µH 20.000/200.0/2000.0mH 20.000/200.00/2000.0H |
| Resolution | 0.1/1µH 0.01/0.1/1mH 0.01/1H |
| Accuracy | ±(1.5% +15 dgt.) |
| Capacitance (F=1kHz) | |
| Ranges | 2000.0pF 20.000/200.00/2000.0nF 20.00/200.00/2000µF |
| Resolution | 0.01/0.1/1pF 0.01/0.1/1nF 0.1µF |
| Accuracy | ±(1.0% +10 dgt.) |
| Resistance (F=1kHz) | |
| Ranges | 20.000/200.00Ω 2.0000/20.000/200.00kΩ 2.0000/20.000/200.0MΩ |
| Resolution | 0.01/0.1/1Ω 0.01/0.1/1kΩ 0.1MΩ |
| Accuracy | ±(1.5% +5 dgt.) |
| General Specifications | |
| Test Frequencies | 100/120/1kHz 10kHz 100kHz |
| Display | Dual LCD display |
| Relative and Data Hold Functions | Yes |
| Backlit Display | Yes |
| Kickstand | Yes |
| Auto Power Off | Yes (after 5 minutes, off) |
| Power Supply | 6 AA Batteries |
| Low Battery Indicator | Yes |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 8.6 x 3.7 x 2.4" (220 x 96 x 60mm) |
| Weight | 0.8lb (360g) |
