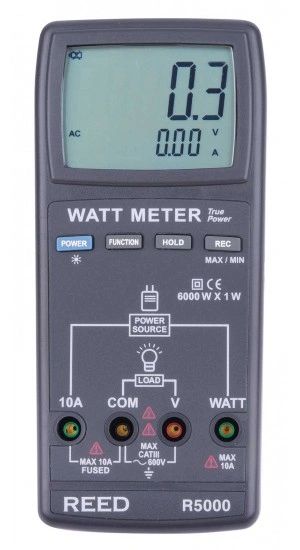

REED R5000 Watt Meter


Dual LCD display with backlight simultaneously displays watt and power factor measurements.

REED R5000 Offers

This true RMS watt meter is capable of measuring up to 6000 watts, 600 volts (AC), 10 amps (AC) and power factor. The R5000 features a backlit LCD display and maximum, minimum and data hold functions.


  • Measures Watt, AC Voltage/Current and Power Factor
  • Backlit dual LCD display
  • Max/Min and Data Hold Functions
  • Cat. III 600V safety rating
  • Low battery indicator and auto shut off

REED R5000 Specifications


Range 0 to 6000W

Resolution 1W

Accuracy ±(1% + 5W)

AC Voltage

Range 0 to 600V

Resolution 0.1V

Accuracy ±(0.3%+0.3V)

AC Current

Range 0 to 10A

Resolution 0.01A

Accuracy ±(0.3% + 0.03A)

Power Factor

Range 0 to 1.0

Resolution 0.01

Accuracy ±(1% + 2d)

General Specifications

Display Dual LCD display

Max/Min and Data Hold Functions Yes

Backlit Display Yes

Kickstand Yes

Auto Power Off Yes (after 10 minutes)

Power Supply 9V Battery or AC Adapter (Optional)

Low Battery Indicator Yes

Overvoltage Category CAT. III 600V

Product Certifications CE

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Dimensions 7.5 x 3.5 x 1.6" (190 x 88 x 40mm)

Weight 0.88lb (398g)

What's included with the REED R5000

  • Watt Meter
  • Test Leads
  • Battery
