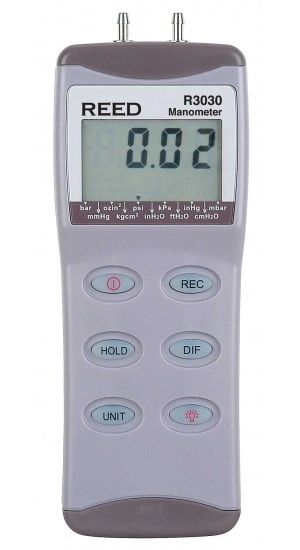

REED R3030 Digital Manometer, Gauge / Differential, 30psi
$239.00
This digital manometer provides accurate measurements in 11 different units of measure and is capable of taking gauge and differential pressure. The R3030 features a large backlit LCD display and internal memory to capture maximum and minimim measurements.
Features
- Measures gauge and differential pressure up to 30psi
- 11 selectable units of measure: psi, inH2O, bar, mbar, kPa, inHg, mmHg, ozin², ftH2O, cmH2O, kgcm²
- Displays pressure and real-time clock simultaneously
- Large, easy-to-read backlit LCD display
- Internal memory saves Max and Min measurements
- Data hold function
- Low battery indicator and auto shut off
Specifications
| Pressure | |
| Measuring Ranges | 30.00 psi 830.4 inH2O 2068 mbar 206.8 kPa 61.08 inHg 1551 mmHg 480.0 ozin² 69.20 ftH2O 2101 cmH2O 2.109 kgcm² 2.068 bar |
| Accuracy | ±0.3% FS |
| Resolution | 0.02 psi 0.5 inH2O 2 mbar / cmH2O 0.2 kPa 0.04 inHg 1 mmHg 0.3 ozin² 0.04 ftH20 0.002 kg/cm² / bar |
| Repeatability | ±0.2% FS |
| Linearity/Hysteresis | ±0.29% FS |
| Max Pressure | 60 psi |
| General Specifications | |
| Display | 4-digit, Dual LCD Display |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Differential Pressure | Yes |
| Response Time | 2 times/sec. |
| Internal Memory | Yes |
| Auto Shut-off | Yes (after 20 mins/off) |
| Low Battery Indicator | Yes |
| Power Supply | 9V battery |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10-80% |
| Dimensions | 7.2 x 2.8 x 1.2" (182 x 72 x 30mm) |
| Weight | 7.8 oz (220g) |
