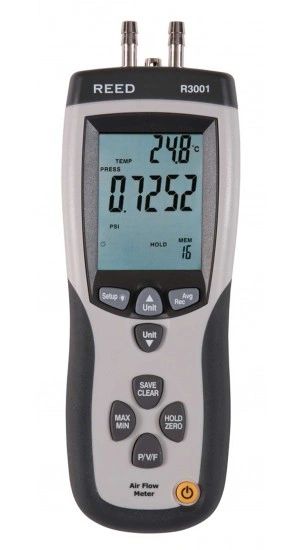

REED R3001 Pitot Tube Anemometer and Differential Manometer, with Air Volume (CFM/CMM)
$449.00
This pitot tube anemometer and differential manometer provides accurate air velocity, airflow and ambient air temperature measurements. The R3001 is capable of capturing maximum, minimum, average and relative readings and features a large dual LCD display with backlit functionality for low lit environments.
Features
- Dual LCD simultaneously displays pressure, air velocity or airflow with temperature
- Max, Min, Avg, Relative and Data hold functions
- Integrated real-time clock time-stamps measurements
- Large, easy-to-read backlit LCD display
- Zero button for offset correction or measurement
- User selectable unit of measure
- Push button calculation of rectangular or circular duct areas
- USB interface and software included
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
Specifications
| Pressure | |
| Measuring Ranges | ±5000 Pa 0.752 psi 50.00mbar 20.07 inH2O 509.8 mmH2O |
| Accuracy | ±0.3% FS |
| Resolution | 1 Pa 0.1 mmH2O 0.01 mbar / inH2O 0.0001 psi |
| Repeatability | ±0.2% FS |
| Linearity/Hysteresis | ±0.29% FS |
| Max Pressure | 10 psi |
| Air Velocity, Air Volume and Temperature | |
| Measuring Ranges | 1 to 80 m/s 200 to 15,733 fpm 3.6 to 288 km/h 2.24 to 178.66 mph 2.0 to 154.6 knots Air Volume: 0 to 99,999 (CFM/CMM) Temperature: 32 to 122°F (0 to 50°C) |
| Accuracy | ±2.5% rdg. Air Volume: ±1% FS Temperature: ±1.5°C (3°F) |
| Resolution | 0.01 m/s 1 fpm 0.1 km/h 0.01 mph 0.1 knots 0.001 CFM/CMM 0.1°F/°C |
| General Specifications | |
| Display | 5-digit, Dual LCD Display |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Average | Yes |
| Differential Pressure | Yes |
| Zero Function | Yes |
| Over range Indicator | Yes |
| Under range Indicator | Yes |
| Air Volume Calculation (CFM/CMM) | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Response Time | 2 times/sec. |
| Internal Memory | Yes |
| Auto Shut-off | Yes (after 20 mins) |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 9V battery |
| PC Connectivity | USB Cable (Included) |
| Software | Yes (included) |
| Software OS Compatibility | Windows XP, 7, 8 and 10 |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10-80% |
| Dimensions | 8.2 x 2.9 x 1.9" (210 x 75 x 50mm) |
| Weight | 12 oz (340g) |
