REED R3000SD-KIT pH/ORP Meter Kit

$375.00

Real-time data logger with integrated SD memory card (optional) measures/records pH and ORP levels in water with manual or automatic temperature compensation. Kit includes R3000SD Data Logging pH/ORP Meter, R3000SD-PH2 pH Electrode and R3000SD-ORP ORP Electrode.


REED R3000SD-KIT Offers

The R3000SD is capable of measuring 0.00 to 14.00 pH and 0 to 1999 mV (ORP). Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

  • Measures pH and ORP levels in water
  • Manual or automatic temperature compensation (with optional ATC probe, R3000SD-ATC)
  • 3-point calibration ensures best accuracy
  • Accepts pH/ORP Electrodes with BNC connector
  • Real time datalogger with integrated SD memory card (optional)
  • User selectable sampling rate
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off


REED R3000SD-KIT Specifications

Temperature

Automatic Temperature

Compensation (ATC) Manual: 33.8 to 212°F (1 to 100°C)

Optional ATC Probe (R3000SD-ATC): 32 to 149°F (0 to 65°C)

ORP (mV)

Measuring Range -1999 to 1999mV

Accuracy ±(0.5% +2 dgt)

Resolution 1 mV

pH

Measuring Range 0.00 to 14.00

Accuracy ±(0.02 pH +2 dgt)

Resolution 0.01 pH

pH Electrode Compatibility Any pH electrode with BNC connector

General Specifications

Display Dual Display, LCD

Backlit Display Yes

Data Hold Yes

Min Yes

Max Yes

Datalogging Capabilities Yes

Real-Time Clock and Date Stamp Yes

Sampling Rate Yes (1 second to 8 hours, 59 minutes and 59 seconds)

External Memory Yes, expandable up to 16GB with SD card (optional)

Auto Shut-off Yes (after 10 minutes/off)

Kick Stand Yes

Tripod Mountable Yes

Low Battery Indicator Yes

Power Supply 6 x AA Batteries or AC Adapter (optional)

Data Output Yes (RS-232)

Product Certifications CE

Operating Temperature 32 to 122°F (0 to 50°C)

Storage Temperature 14 to 140°F (-10 to 60°C)

Operating Humidity Range 10 to 80%

Dimensions 7 x 2.7 x 1.9" (177 x 68 x 45mm)

Weight 1.1lb (489g)

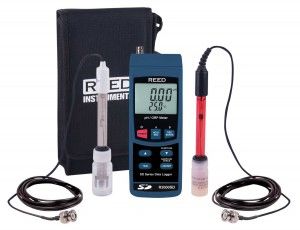

This REED R3000SD-KIT pH/ORP Meter Kit Includes:


REED R3000SD Data Logging pH/ORP Meter

Real-time data logger with integrated SD memory card (optional) measures/records pH and ORP levels in water with manual or automatic temperature compensation.


REED R3000SD-PH2 General Purpose pH Electrode

For use with the REED R3000SD & SD-230 Data Logging pH/ORP Meter.


REED R3000SD-ORP Professional ORP Electrode

For use with the REED R3000SD & SD-230 Data Logging pH/ORP Meter.


What's included with the REED R3000SD-KIT

  • Data Logging pH/ORP Meter
  • R3000SD-PH2 General Purpose pH Electrode
  • R3000SD-ORP Professional ORP Electrode
  • Soft Carrying Case
  • Batteries


Ideal Applications for the REED R3000SD-KIT

  • Water conditioning
  • General purpose pH measurement
  • Aquariums
  • Wastewater monitoring
  • Beverage production
