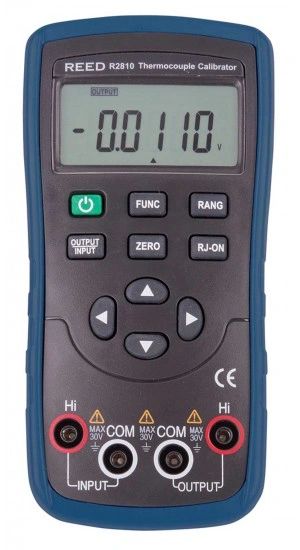

REED R2810 Thermocouple Calibrator

$499.00

This Thermocouple Calibrator is capable of sourcing and measuring 8 different types of thermocouples. The R2810 features a large easy-to-read LCD display, a basic accuracy of 0.05% and includes the essentials to test and calibrate your temperature sensors.


REED R2810 Offers

This thermocouple calibrator is capable of sourcing and measuring 8 different types of thermocouples. The R2810 features a easy-to-read LCD display, basic accuracy of 0.05% and includes the essentials to test and calibrate your temperature sensors.

Features

  • Source and measure 8 thermocouple types, including R, S, B, E, K, J, T, N; and volts
  • Basic accuracy of 0.05%
  • Internal cold junction compensation
  • Easy to read 6-digit LCD display
  • Zero adjustment button
  • User selectable unit of measure (°F/°C)
  • Low battery indicator and auto shut off


REED R2810 Specifications

Measure Function

Output Range Output Range Resolution Accuracy

DCV 100mV -10 to 110mV 0.01mV 0.05% rdg. +30µV

TC R -40 to 1760°C 1°C ±0.05% rdg. +3°C (≤100°C);

±0.05% rdg. +2°C (>100°C)

S -20 to 1760°C 1°C

B 400 to 1800°C 1°C ±0.05% rdg. +3°C (400 to 600°C);

±0.05% rdg. +2°C (>600°C)

E -200 to 1000°C 0.1°C ±0.05% rdg. +2°C (≤-100°C);

±0.05% rdg. +1°C (>-100°C)

K -200 to 1370°C 0.1°C

J -200 to 1200°C 0.1°C

T -200 to 400°C 0.1°C

N -200 to 1300°C 0.1°C



Source Function

Output Range Output Range Resolution Accuracy

DCV 100mV -10 to 110mV 0.01mV 0.05% rdg. +30µV

1V -0.1 to 1.1V 0.1mV 0.05% rdg. +0.3mV

TC R -40 to 1760°C 1°C ±0.05% rdg. +3°C (≤100°C);

±0.05% rdg. +2°C (>100°C)

S -20 to 1760°C 1°C

B 400 to 1800°C 1°C ±0.05% rdg. +3°C (400 to 600°C);

±0.05% rdg. +2°C (>600°C)

E -200 to 1000°C 0.1°C ±0.05% rdg. +2°C (≤-100°C);

±0.05% rdg. +1°C (>-100°C)

K -200 to 1370°C 0.1°C

J -200 to 1200°C 0.1°C

T -200 to 400°C 0.1°C

N -200 to 1300°C 0.1°C

General Specifications

Display 6-Digit LCD

Zero Adjustment Button Yes

Kick Stand Yes

Power Supply 2 AA Batteries

Cold Junction Compensation Yes

Auto shut off Yes (after 15 mins/off)

Low Battery Indicator Yes

Replaceable Test Leads Yes

Product Certifications CE

Operating Temperature 32 to 122°F (0 to 50°C)

Operating Humidity Range 0 to 85%

Storage Temperature 14 to 122°F (-10 to 50°C)

Dimensions 7.1 x 3.5 x 1.9" (180 x 90 x 47mm)

Weight 8.2oz (500g)


What's included with the REED R2810

  • Temperature calibrator
  • Test leads
  • Alligator clips
  • Thermocouple adapter
  • Protective holster
  • Batteries


REED R2810 Applications

The REED R2810 is used primarily for calibrating devices that use thermocouples as an input signal such as meters, controllers, transmitters, data loggers and recorders. The accuracy of thermocouple temperatures are an important factor in many applications including: chemical production, petroleum refineries, manufacturing, power production, steel and iron industry. Calibration is performed by measuring/verifying the voltage output of the thermocouple under test.
