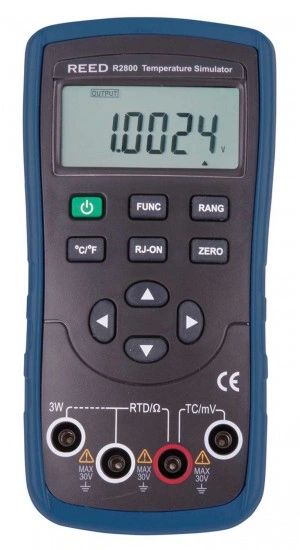

REED R2800 Temperature Simulator

This Temperature Simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 7 RTDs. The R2800 features internal cold junction compensation, a basic accuracy of 0.05% and an easy-to-read LCD display.

REED R2800 Offers

This temperature simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 7 RTDs. The R2800 features internal cold junction compensation, basic accuracy of 0.05% and an easy-to-read LCD display.

Features

• Source 8 thermocouple types, including R, S, B, E, K, J, T, N; and 7 RTD types, including Pt 10 (385), Pt100 (385), Pt200 (385), Pt500 (385), Pt1000 (385), Cu10, Cu50; plus volts and ohms
• Basic accuracy of 0.05%
• Internal cold junction compensation
• Easy-to-read 6-digit LCD display
• Zero adjustment button
• User selectable unit of measure (°F/°C)
• Low battery indicator and auto shut off

REED R2800 Specifications

Display 6-Digit LCD

Zero Adjustment Button Yes

Kick Stand Yes

Power Supply 2 "AA" Batteries

Cold Junction Compensation Yes

Auto Shut Off Yes (after 15 mins/off)

Low Battery Indicator Yes

Replaceable Test Leads Yes

Product Certifications CE

Operating Temperature 32 to 122°F (0 to 50°C)

Operating Humidity Range 0 to 85%

Storage Temperature 14 to 122°F (-10 to 50°C)

Dimensions 7.1 x 3.5 x 1.9" (180 x 90 x 47mm)

Weight 8.2oz (500g)

What's included with the REED R2800

• Temperature simulator
• Test leads
• Alligator clips
• Thermocouple adapter
• Protective holster
• 2 x "AA" Batteries

Ideal Applications for the REED R2800

This temperature simulator can be used to simulate temperature for the verification and calibration of temperature instruments including thermocouple and RTD thermometers.
