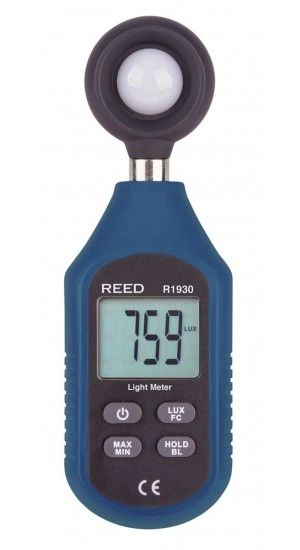

REED R1930 Compact Light Meter

Backlit LCD display with Lux/Foot-candle measurements.

REED R1930 Offers

This compact light meter is capable of taking Lux and Footcandle (Fc) measurements. The R1930 features a backlit LCD display, data hold and min/max functions, low battery indicator and auto shut-off.

Features

• User selectable Lux/Footcandle measurements
• Designed for one-handed operation
• Backlit 4-digit LCD display
• Max, min and data hold functions
• Low battery indicator and auto shut off

REED R1930 Specifications

Measuring Ranges Lux: 0 to 199999

Fc: 0 to 18580

Accuracy 0 to 9999 Lux (0 to 929 Fc): ±(4% rdg.+ 8 dgt)

≥10000 Lux (≥1000 Fc): ±(5% rdg.+ 10 dgt)

≥100000 Lux (≥9999 Fc): ±(5% rdg.+ 10 dgt)

0 to 9999 Fc: Fc = Lux/10.76

≥10000 Fc: Fc = Lux/10.76

Resolution Lux: 1, 10, 100

Fc: 1, 10

Sensor Type Silicon photocell

Display 4-digit LCD

Backlit Display Yes

Data Hold Yes

Min Yes

Max Yes

Overange Indicator Yes

Sampling Rate 2 times/second

Auto Shut-Off Yes (after 5 minutes, off)

Low Battery Indicator Yes

Power Supply 3 "AAA" Batteries

Product Certifications CE

Operating Temperature 32 to 122°F (0 to 50°C)

Storage Temperature 14 to 140°F (-10 to 60°C)

Operating Humidity Range 10 to 80%

Dimensions 6.3 x 1.9 x 1.1" (160 x 50 x 28mm)

Weight 4.2oz (118g)

What's included with the REED R1930

• Light Meter
• 3 x "AAA" Batteries

deal Applications for the REED R1930

• Cinematography and photography applications
• Museum exhibits
• Lighting system installation
• Environmental monitoring
• Interior design projects
