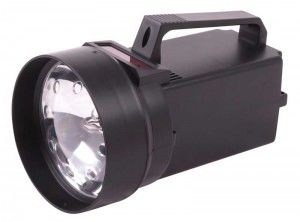

REED K4020 Digital Stroboscope, 110V
$279.00
This digital stroboscope freezes the motion and measures the speed of a rotating object, without contact. The K4020 features flash rate speeds from 100 to 10,000 RPM, a xenon light bulb and bright LED display.
Features
- Simply aim the instrument at the rotational object and synchronize the strobe's flash rate (FPM) with object speed (FPM)
- Basic accuracy of ±0.05%
- 4-digit LED display
- 5 to 30 minute duty cycle (RPM dependent)
- Tripod mount for stationary use
- 6 foot power cord
Specifications
| Flash Range | 100 to 10,000 RPM |
| Resolution | 1 RPM |
| Basic Accuracy | ±(0.05% + 1 dgt.) |
| Flash Tube Specifications | |
| Type | Xenon lamp |
| Flash Duration | Approx. 60 to 1000 µs |
| Flash Color | Xenon white 6,500°K |
| Flash Energy | 4 Watt-seconds (joules) |
| Beam Angle | 80 degrees |
| General Specifications | |
| Response Time | <1 sec |
| Sampling Time | 1x/sec |
| Display Size/Type | 4 Digit LED Display |
| Tripod Mount | Yes |
| Power Supply | 110VAC, 50/60 Hz |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10-80% |
| Dimensions | 8.3 x 4.8 x 4.8" (201 x 120 x 120 mm) |
| Weight | 2.2lbs (1kg) |
