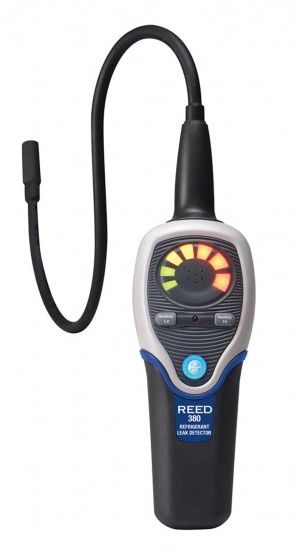

REED C-380 Refrigerant Leak Detector
$199.00
This refrigerant leak detector is capable of pinpointing small leaks quickly and accurately with audible and visual indicators. The C-380 requires no field calibration, measures CFC, HCFC and HFC refrigerants and has a battery life of approximately 40 hours (alkaline battery).
Features
- Detects all CFCs, HFCs, and HCFCs
- Quick response and high accuracy detects small leaks
- 15" (390mm) gooseneck for hard to reach areas
- Designed for one-handed operation
- User adjustable sensitivity (High/Low)
- Tricolor visual indicator
- Audible (buzzer) and visual (LED) alarm indicators
- Low battery indicator and auto shut off
- User replaceable sensor
Specifications
| Detected Gases | CFC's: R11, R12, R13 HCFC's: R22, R502, R500 HFC's: R134a, R123, R125, R23, R404A, R407C, R410A and other halogen based compounds |
| Sensitivity | R22, 134A: 6g/year(H), 30g/year(L) R404A, 407C, 410A: 8g/year(H), 40g/year(L) |
| General Specifications | |
| Sensor Type | Advanced ionization detector |
| Display | Tricolor LED bar indicator |
| Alarm | Audible (buzzer) and Visual (bar indicator) |
| Sensitivity Settings | Low and High |
| Warm-up Time | 10 seconds |
| Response Time | Less than 1 second |
| Auto Shut-off | Yes (after 10 mins) |
| Low Battery Indicator | Yes |
| Power Supply | 4 AA batteries |
| Battery Life | Approx. 40 hours |
| Product Certifications | CE, RoHS |
| Probe Length | 15" (390mm) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-70% |
| Dimensions | 8.5 x 2.6 x 2.2" (217 x 66 x 56mm) |
| Weight | 9.3 oz (265g) |
