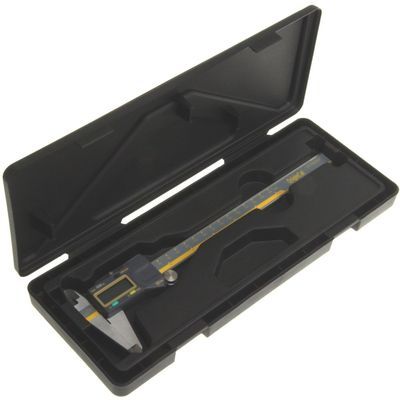

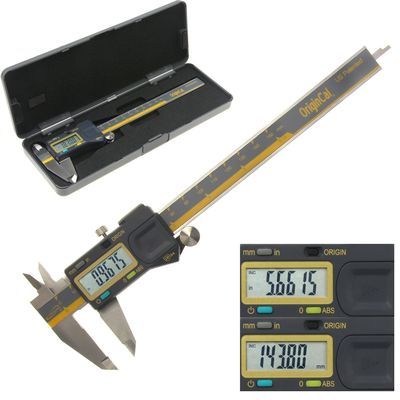

iGAGING Absolute Origin 6" Digital Caliper


iGaging ABSOLUTE ORIGIN Origin Digital Caliper

iGaging's Origin Digital Caliper uses SUPER HIGH ACCURACY ABSOLUTE memory technology. It keeps track of its origin position once set. Whenever the digital caliper turned on, the easy-view large LCD displays the actual sensor position ready to start measuring. It's not necessary to reset zero. The measuring speed is unlimited. Standard USB data output. High quality surface finish for extra smooth slider movement.

USB cable available separately.


Unlimited measuring speed
Resolution: 0.0005"/0.01mm
Accuracy: 0.001"/0.02mm
Range: 6"/150mm
IP54 splash water and dust resistant
Measuring speed: Unlimited
Protection rating: IP54 (Humidity and dust resistance )
Battery: 1x 3V CR2032 Battery (spare included) life:2 years under normal operation
Hardened Stainless steel, lapped finished
Operating environment:temperature 0�c+40�c; relative humidity: 80%
Battery life:more than 2 years under normal operation

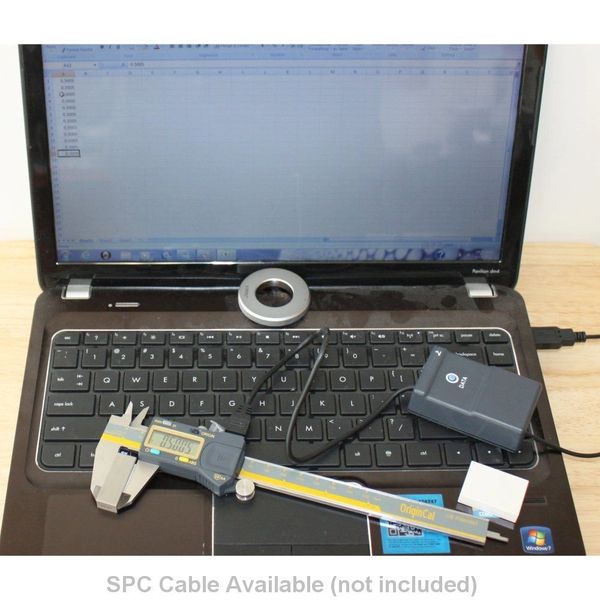

SPC Output with USB connection available
Meets DIN Standard 862; ISO 9001 certified manufacturing
2 Years warranty

iGaging part number: 100-700-06
