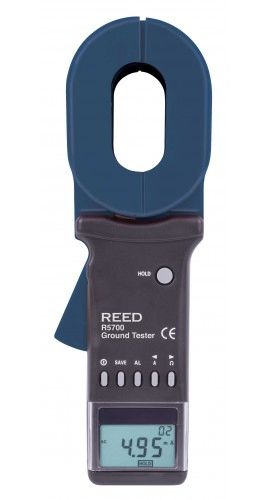

REED R5700 Clamp Ground Resistance Tester

$1,295.00

REED R5700 Offers

This auto ranging earth resistance clamp meter measures ground resistance and leakage current. The R5700 has internal memory capable of storing up to 99 measurements, allow for a user to set alarm thresholds and features a double molded conductor clamp for added protection.

Features

  • Auto-ranging ground resistance and leakage current measurements
  • 0.001Ω resolution for low resistance measurements
  • 9999-count backlit LCD display
  • Internal memory stores up to 99 readings
  • User adjustable alarms
  • Data hold function
  • Durable double molded conductor clamp
  • 1.26" (32mm) jaw size for large ground rods
  • Low battery indicator and auto shut off
  • Cat. III 300V safety rating


REED R5700 Specifications

Ground Resistance

Ranges 0.010 to 0.099Ω

0.10 to 0.99Ω

1.0 to 49.9Ω

50.0 to 99.5Ω

100 to 199Ω

200 to 395Ω

400 to 590Ω

600 to 880Ω

900 to 1200Ω

Accuracy 0.010 to 0.099Ω: ±(1% + 0.01Ω)

0.10 to 0.99Ω: ±(1% + 0.01Ω)

1.0 to 49.9Ω: ±(1% + 0.1Ω)

50.0 to 99.5Ω: ±(1.5% + 0.5Ω)

100 to 199Ω: ±(2% + 1Ω)

200 to 395Ω: ±(5% + 5Ω)

400 to 590Ω: ±(10% + 10Ω)

600 to 880: ±(20% + 20Ω)

900 to 1200Ω: ±(25% + 30Ω)

Resolution 0.001Ω

0.01Ω

0.1Ω

0.5Ω

10Ω

20Ω

30Ω

Current

Ranges 0 to 9.95A

10 to 99mA

100 to 300mA

0.30 to 2.99A

3 to 9.9A

10 to 30A

Accuracy 0 to 9.95A: ±(2.5% + 1mA)

10 to 99mA: ±(2.5% + 5mA)

100 to 300mA: ±(2.5% + 10mA)

0.30 to 2.99A: ±(2.5% + 0.1A)

3 to 9.9A: ±(2.5% + 0.3A)

10 to 30A: ±(2.5% + 0.5A)

Resolution 0.5mA, 0.1mA, 1mA, 0.01A, 0.1A, 0.1A

General Specifications

Range Selection Autoranging

Sampling Time 0.5s

Display 9,999 count LCD display

Backlit LCD Yes

User Selectable Alarms Yes

Display Hold Yes

Internal Memory Yes up to 99 data points

Autoshut off Yes (after 5 mins)

Power Supply 4 "AA" Batteries

Over Range Indicator Yes

Low Battery Indicator Yes

Jaw Opening 1.26" (32mm)

Overvoltage Category CAT. III 300V

Product Certifications CE, RoHS

Operating Temperature 32 to 131°F (0 to 55°C)

Operating Humidity 10 to 90%

Storage Temperature -4 to 140°F (-20 to 60°C)

Dimensions 11.2 x 3.3 x 2.2" (285 x 85 x 56mm)

Weight 2.6lbs (1160g)

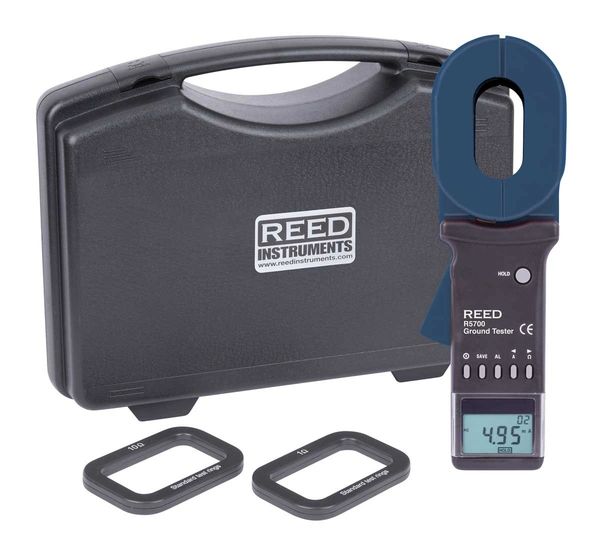

What's included with the REED R5700

  • R5700 Ground Resistance Tester
  • 2 Resistance Calibration Loops (1Ω and 10Ω)
  • Batteries
  • Hard Carrying Case


Datasheet

Manual
