REED R8080 Sound Level Meter, Datalogger with Bargraph, 30 to 130 dB

$329.00

This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.

Please call or contact support for R8080 Calibration Certificate Quote. We will meet or beat any manufacturer’s calibration price.

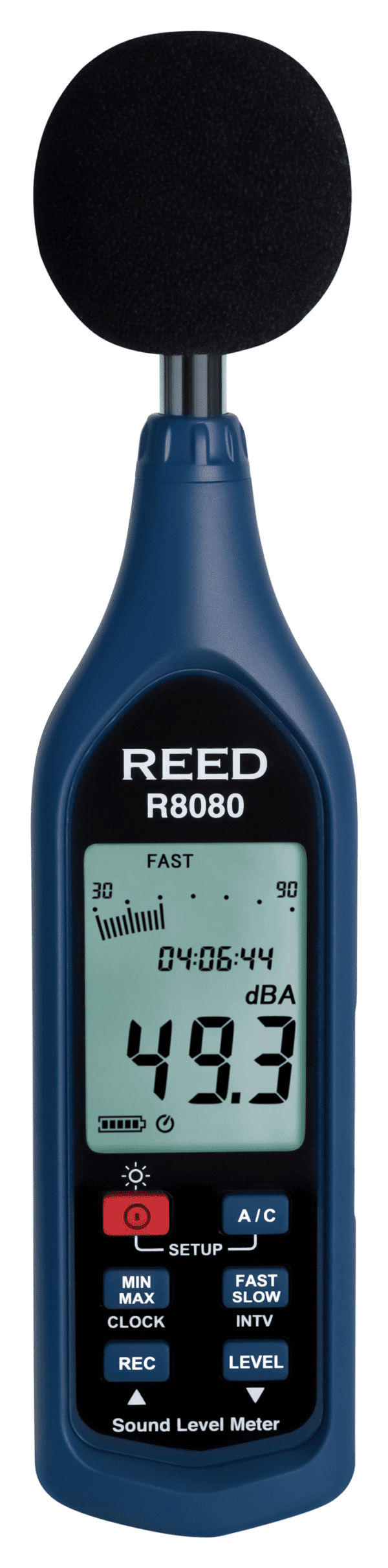

Close-up of a REED R8080 sound level meter displaying a fast measurement.

Features

  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60 dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Record up to 64,000 datapoints and keep track with internal time and date stamp
  • User selectable sampling rate from 1 to 60 seconds
  • Easy-to-read backlit LCD display
  • Digital analog bargraph
  • Min / Max hold and auto shut off
  • Tripod mount for long-term monitoring
  • Low battery indicator

Specifications

Measuring Ranges

Low:  30 to 90dB

Med:  50 to 110dB

High:  70 to 130dB

Full:  30 to 130dB
Dynamic Range 60 dB (in each range)
Accuracy ±1.4 dB
Resolution

Digital:  0.1 dB

Analog:  2 dB
Response Time

Digital: 500ms

Analog: 50ms
Frequency Range 20 Hz to 8 kHz
Frequency Weighting A, C
Time Weighting Fast / Slow  (125 ms and 1 s)
Microphone 0.5″ (12.7 mm) electret condenser
Digital Analog Bargraph Yes  (30 segment)
Display 4-digit LCD
Backlit Display Yes
Min Yes
Max Yes
Alarm Indicators Under and Over  (visual on-screen)
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes  (between 1 s and 60 s)
Internal Memory 1 MB  (64,000 datapoints)
Auto Shut-off Yes  (after 30 mins/off)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 4 x AAA batteries
Output Yes  (AC / DC)
Battery Life Approx 50 hours
PC Connectivity USB
Software OS Compatibility Windows XP / Vista / 7 / 8 / 10 / 11
Product Certifications CE, IEC 61672-1 Class 2, ANSI S1.4 Type 2
Operating Temperature 32 to 104°F  (0 to 40°C)
Storage Temperature 14 to 140°F  (-10 to 60°C)
Operating Humidity Range 10 to 90%
Dimensions 10.4 x 2.5 x 1″  (264 x 63 x 29 mm)
Weight 8.8 oz  (245 g)

What’s included with the R8080

  • Sound Level Meter / Datalogger
  • Windshield Ball
  • USB Cable
  • PC Software
  • Hard Carrying Case
  • Batteries
