Additel 601Ex Intrinsically Safe Digital Pressure Gauge

  • Pressure ranges from -15 psi (-1 bar) to 15,000psi (1,000 bar)
  • 0.5% FS accuracy
  • Fully temperature compensated accuracy (-20°C to 50°C)
  • Bluetooth communication
  • Intrinsically safe
  • Stainless steel case, fully welded sensor
  • IP67 rated
  • Battery life up to 9000 hours



Models:  Please see Ordering Information for model numbers.



Please call or contact support for equipment price, lead time, and to order equipment.

Please call or contact support for calibration quote. We will meet or beat any manufacturer’s calibration price.

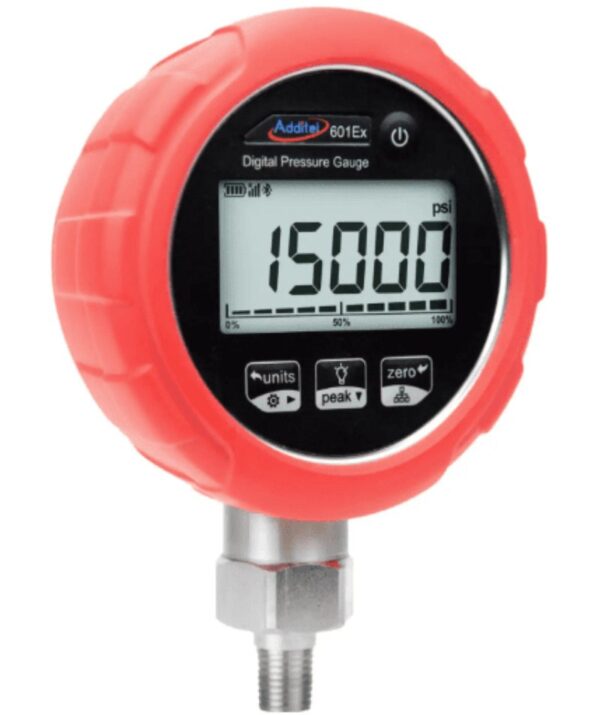

Digital pressure gauge displaying 15000 PSI with a red protective casing.

Details

The ADT601Ex intrinsically safe digital pressure gauge is designed to improve upon traditional dial pressure gauges by providing a reliable and accurate digital solution for a minimal investment. The included Bluetooth technology allows users to connect directly to mobile phones for remote monitoring. This genuine Additel gauge was designed for the field to be an economical, but accurate and dependable gauge for use in a variety of environments, including intrinsically sensitive areas.



Intrinsically safe:

  • The ADT601Ex has passed the most stringent ATEX, IECEx intrinsic safety certifications. Each unit complies with a certification level of Ex ia IIC T4 Ga. This highly qualified reference recorder can be widely used in potentially explosive gas environments, such as oil and gas platforms, refineries, chemical and petrochemical plants, pharmaceutical industry, energy and gas processing industry.



Durable:

  • With a durable stainless steel outer shell, welded silicon piezoresistive sensor, and drop test rated to 1 meter, these gauges are up to the task in the most demanding environments. The dustproof and waterproof rating (IP67), coupled with the shock and vibration resistance (5g vibration 10g shock) offer even more insurance that these gauges are durable. If that wasn’t enough, Additel has also designed them to handle up to 3X overpressure to guard against over pressure damage.



Easy-to-use:

  • Field operators often have tight schedules and high task loads, and there is no extra time for making mistakes. This means that the digital pressure gauge must be simple and easy to use. The ADT601Ex series gauges are carefully designed with button functions which can be operated smoothly and quickly. The display is clear in bright sunlight, and the backlight can be turned on with one touch for darker ambient conditions. The pressure value can be displayed in large fonts and the pressure can be read from a few meters away. The pressure change trend bar is simple and clear.



Easy to maintain:

  • The ADT601Ex is designed with membrane buttons, which can simply be wiped clean for quick and simple cleaning. Coupled with the extra-long battery life of these easy-to-use gauges, you will find that maintenance is minimal and infrequent.

Specifications

Specifications for Additel 601Ex
Intrinsic Safety

&

European Compliance

 601Ex:

  • CE marked
  • EU:  II 1G EX ia IIC T4 Ga T4 at -20~50°C
  • North America:  CLASS I, Division 1, Groups A, B, C and D, T4
    CLASS I, Zone 0, AEx ia IIC T4 Ga
    T4 at -20~50°C
  • International:  EX ia IIC T4 Ga T4 at -20~50°C
Accuracy

(For detailed accuracy, see pressure range table)

 0.5% FS
Gauge types Gauge pressure
Operational buttons  4 membrane buttons with locking feature
Display Description:  Wide viewing angle FSTN segment code LCD

White backlight, backlight time:  ON, 15 seconds, 30 seconds, 45 seconds, 60 seconds, the default is 15 seconds

4 digits display, character height 14.5 mm (0.57″), main display + unit display + horizontal pressure trend

Display rate:  1 reading per second in low power mode (default setting). Adjustable from 10 readings per second to 1 reading every 10 seconds
Pressure units 12 regular units:  Pa, kPa, MPa, psi, bar, mbar, kgf/cm², %, mmH2O(4°C), mmHg(0°C), InH2O(4°C), InHg(0°C)
Environmental Compensated Temp. :  -4°F to 122°F (-20°C to 50°C)

Operating Temp. :  -4°F to 122°F (-20°C to 50°C)

Storage Temp. :  -40°F to 167°F (-40°C to 75°C)

Humidity:  5% RH~95% RH, non-condensing
Pressure port 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20 x 1.5 male
Power Battery:  3 AA alkaline batteries

Battery life:

  • Super stable mode[1]:  4000 hours (3 reading/s), 1000 hours (10 reading/s)
  • Low power mode[2]:  5000 hours (2 reading/s), 9000 hours (1 reading/s, default), 18000 hours (1 reading/10s)

Power auto-off:  120, 90, 60, 45, 30, 15 minute auto-off options or never
Enclosure Materials:

  • Case material:  304 SS
  • Front panel material:  anti-static PET
  • Rubber boot (optional) material:  anti-static TPU
  • Wetted parts material:  316L SS

Dimensions:  Ø3.62″ x 1.69″ depth x 5.59″ height (Ø92 mm x 43 mm depth x 142 mm height)

Weight:  1.2 lbs (0.55 kg)
Compliance Protection Level:  IP67 (against 1 meter water immersion for 30 mins)

Vibration:  5 g

Shock resistance:  10 g

1 meter drop test (without rubber boot)
Communication Bluetooth 20 meters range without shelter (BLE5.3)
Filtering Averaging (3 to 10 samples) or low-pass first-order filter
Overpressure warning Display flash warning when pressure exceeds 120% of FS
Warranty 1 year
  • [1]: The pressure sensor has been powered continuously when the gauge is on, to improve the measurement resolution and reduce the impact of ambient humidity.
  • [2]: The pressure sensor will be powered off after each sampling, to improve the continuous working hours.





More Specifications: Pressure range (Gauge pressure)

Ordering information

Model numbers of the Additel 601Ex

ADT601Ex-
Accuracy
  • -50:  0.5% of full span
Pressure range P/N
Range type
  • -PSI:  Range by psi
  • -BAR:  Range by bar
Pressure port type
  • -N:  1/4NPT male
  • -N2:  1/2NPT male
  • -B:  1/4BSP male
  • -B2:  1/2BSP male
  • -M:  M20 X 1.5 male

Included accessories with the Additel 601Ex

  • AA alkaline battery (3 pcs)
